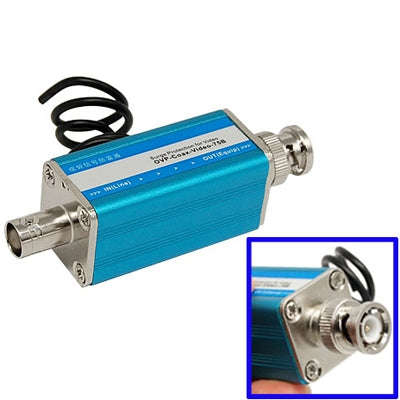

Male to Female BNC Interface Video CCTV Surge Arrester, CCTV Surge Arrester

Description:

1) Adopting internal standard BNC interface(male to female), this Surge Protector can protect equipment which transmit video digital signal by coaxial-cable from high voltage and provides lightning protection for the video and signal products.

2) Video Surge Arrester features two-part surge protection, small insertion loss, large discharge current.

3) Suitable for coaxial communication equipment surge protection, such as cable TV, Satellite TV receive, minitor system, etc.

4) CCTV Surge Protector is used to protect the indirect thunder influence or other instantaneous over voltage surge.

Specifications:

1) Type: OVP VIDEO SPD

2) Model: OVP-Coax-Video-75B

3) Material: Aluminum

4) Color: Blue

5) Standards for air and creepage distances: VDE 0110-1; IEC 60664-1: 1992-10

6) Total surge current(8/20us): 10kA

7) Ambient temperature(operation): -40~+85 degree

8) Degree of protection: IP20

9) Direction of action: Line-Shield/Earth Ground

10) Size: 82x34x25mm

11) Cable length: 28cm

12) Weight: 86.4g
