PCI balances cost, performance, compatibility and advanced features for computing
platforms.

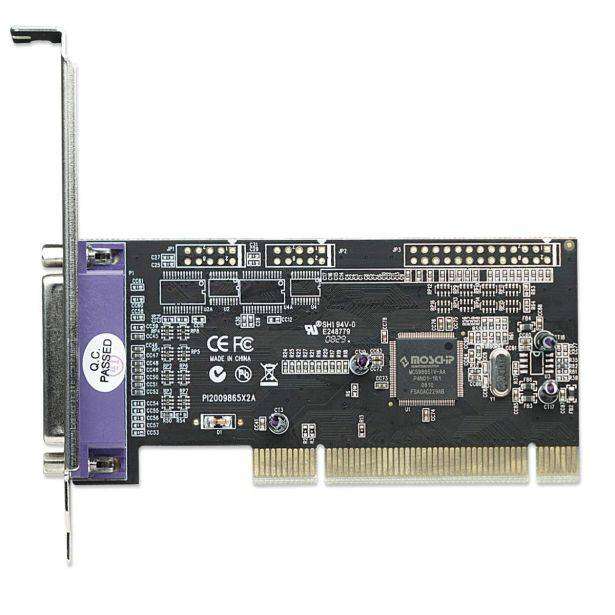

The Manhattan Parallel PCI Card quickly and easily adds on DB25 port to desktop systems
to connect and communicate with a parallel peripheral device. With data transfer speeds of
up to 1.5 Mbps, the Manhattan Parallel PCI Card and its compliance with PCI 2.3
specifications helps ensure that most desktop computers and connected parallel devices
can operate at peak performance. A low-profile bracket is included to facilitate installation
and bring high-performance computing to desktop solutions.
Features:
Easily adds one parallel port to a desktop computer
Supports EPP, ECP and SPP modes
Fully supports PCI IRQ sharing
Universal bus power design for 5 V and 3.3 V
Automatically selects IRQ and IO address
Specifications:
Standards and Certifications
PCI 2.3
CE
FCC
RoHS
WEEE
Port Specifications
Parallel DB25 female connection
Maximum 1.5 Mbps throughput
Supports EPP, ECP and SPP modes
MosChip 9865 chipset
Bus Specifications
PCI 2.3 32-bit, 33 MHz
Supports 32/64-bit PCI slot
