Manhattan 5

Product Overview

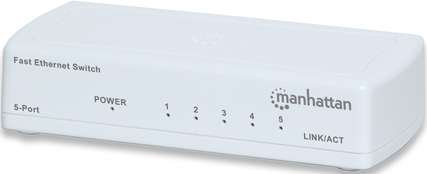

The Manhattan 5-port Fast Ethernet Switch (560672) offers versatile connectivity with five 10/100 Mbps auto-sensing ports, supporting both 10BaseT and 100Base-TX standards. Its store-and-forward architecture and Auto MDI/MDX functionality ensure efficient data transfer and easy setup for various network devices. With support for IEEE 802.3x Flow Control and Backpressure, this compact switch provides reliable performance for small office or home network environments.

Specifications
 Ports: 5 10/100 Mbps NWay switch T ports
 Cable: Cat3, 4, 5 UTP/STP
 Duplex modes: all ports (up to 200 Mbps)
 Uplink: all ports Auto MDI/MDX (Auto Uplink)
 Switch architecture: store and forward switch technology
 External AC adapter: 5 V, 0.6 A

Filter/forward rate:
- 10BaseT: 14,880 pps (packets per second)
- 100Base-TX: 148,800 pps (packets per second)

Standards
 IEEE 802.3 10Base-T Ethernet
 IEEE 802.3u 100Base-TX Fast Ethernet
 IEEE802.3x Flow Control and Backpressure

Environmental
 Dimensions: 97 (W) x 45 (L) x 23 (H) mm (3.81 x 1.77 x 0.9 in.)
 Operating temperature: 0 40°C (32 104°F)
 Humidity: 10 90% (non-condensing)

Package Contents
 5-Port Fast Ethernet Switch
 Power adapter
 User manual
