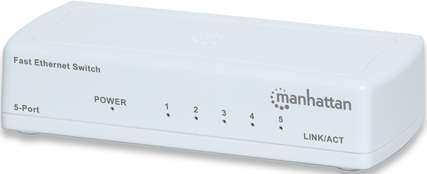

Manhattan 5-Port Fast Ethernet Switch, Retail Box, 2 year Limited Warranty
Product Overview
The Manhattan 5-port Fast Ethernet Switch (560672) offers versatile connectivity with five 10/100 Mbps auto-sensing ports, supporting both 10BaseT and 100Base-TX standards. Its store-and-forward architecture and Auto MDI/MDX functionality ensure efficient data transfer and easy setup for various network devices. With support for IEEE 802.3x Flow Control and Backpressure, this compact switch provides reliable performance for small office or home network environments.
Features
5-port Fast Ethernet switch expands your network in an instant
Easy plug-and-play installation simply power it up and start using it
Compatible with all Windows and Macintosh systems
Five 10/100 auto-sensing ports automatically detect optimal network speeds
Supports any combination of 10 Mbps or 100 Mbps network devices
Ultra-compact design
Fanless design ideal for silent operation
Store and forward switching architecture
Specifications
Ports: 5 10/100 Mbps NWay switch T ports
Cable: Cat3, 4, 5 UTP/STP
Duplex modes: all ports (up to 200 Mbps)
Uplink: all ports Auto MDI/MDX (Auto Uplink)
Switch architecture: store and forward switch technology
External AC adapter: 5 V, 0.6 A
Filter/forward rate:
- 10BaseT: 14,880 pps (packets per second)
- 100Base-TX: 148,800 pps (packets per second)
Standards
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE802.3x Flow Control and Backpressure
Environmental
Dimensions: 97 (W) x 45 (L) x 23 (H) mm (3.81 x 1.77 x 0.9 in.)
Operating temperature: 0 40°C (32 104°F)
Humidity: 10 90% (non-condensing)
Package Contents
5-Port Fast Ethernet Switch
Power adapter
User manual
