Manhattan

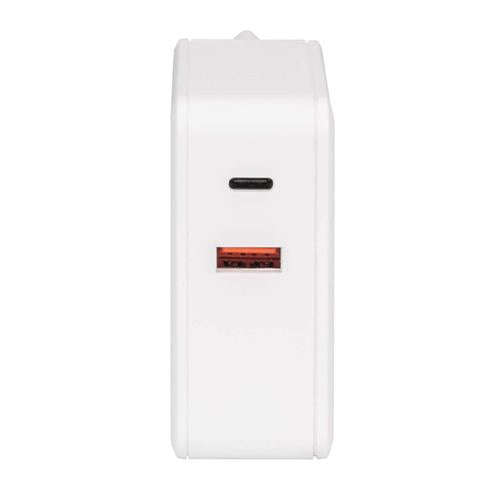

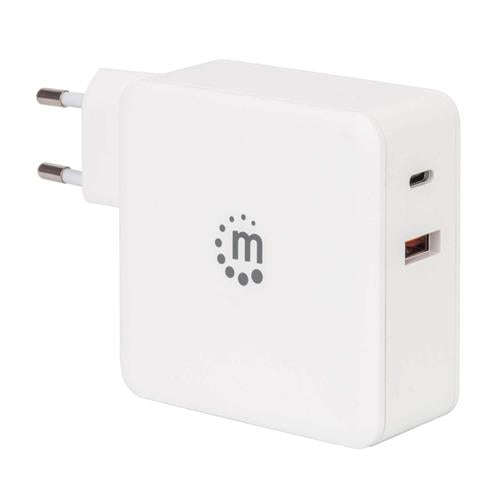

Manhattan Power Delivery Wall Charger - 60 W USB-C Power Delivery Port (up to 60 W), USB-A Charging Port (up to 2.4 A), White, Retail Box, Limited Lifetime Warranty
Product Overview
Power up your devices with a portable, powerful Power-Delivery-capable charger.
Enjoy complete charging power with the Manhattan Power Delivery Wall Charger - 60 W. This wall charger uses Power Delivery (PD) technology to power up any device with a USB-C charging port, from laptops to mobile phones, and the additional USB-A port can quickly charge any handheld device or tablet. The perfect companion for travelers with its stylish, compact and ultra-modern design, the Manhattan Power Delivery Wall Charger - 60 W also intelligently protects itself and your devices with its short-circuit-, overvoltage-, overcurrent- and overtemperature-protection functions.
Features:
Two-device charging solution with USB-C Power Delivery (PD 3.0) and USB-A charging ports
Charges two different devices simultaneously with ideal potential energy
USB-C PD port delivering up to 60 W to charge a notebook, laptop, Ultrabook, tablet or other USB-C powered device
USB-A port delivering up to 5 V / 2.4 A to quickly charge a portable device
Overload, overcurrent and overheat protection
Compact, portable and stylish design for easy travel
Specifications
Product Code: 180221
Description: Manhattan Power Delivery Wall Charger
Standards and Certifications
USB 2.0
PD 3.0
FCC
UL
CE
RoHS
WEEE
Ports
One USB-C with Power Delivery (PD 3.0)
One USB-A
General
AC input: 100 240 V; 50 60 Hz
USB-C output: 5 20 V; maximum 3 A; 60 W
Voltage/current settings (maximum):
- USB-C: - 5 V / 3 A - 9 V / 3 A - 12 V / 3 A - 15 V / 3 A - 19 V / 3 A - 20 V / 3 A - USB-A: - 5 V / 2.4 A Input Characteristics
AC rated voltage: 100 240 V
Frequency range: 50 60 Hz (±1 Hz)
Current: 1 A at 100 VAC 60 HZ
Output Characteristics
Rated voltage: 5 / 9 / 12 / 15 / 19 / 20 V
Current: 3 A maximum (at constant voltage mode)
Rated power: 60 watts maximum
Overshoot voltage: 5%
Protection Characteristics
Short circuit (SCP) with auto-recovery mode
Overvoltage (OVP) with auto-recovery mode
Overcurrent (OCP) - current limit: 150% (max)
Overtemperature (OTP)
Physical
Dimensions: 7 x 7 x 3 cm (2.76 x 2.76 x 1.18 in)
Weight: 0.16 kg (4.9 oz.)
Housing: plastic
Operating Environment
Operation Temperature: 0 30°C (32 86°F)
Storage Temperature: -20 65°C (-4 149°F)
Humidity (noncondensing): 10 90%
Package Contents
Power Delivery Wall Charger - 60 W
Quick Instruction Guide
