Manhattan HDMI Adapter

Product Overview

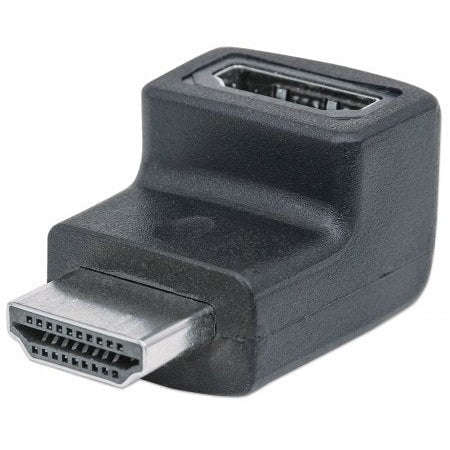

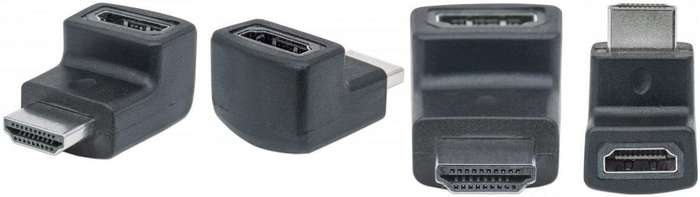

The Manhattan HDMI A Female to A Male, downward 90° Angle Adapter is ideal for navigating around difficult corners or connecting to the most inaccessible device ports. This HDMI Adapter allows 4K resolution and a bandwidth of 10.2 Gbps at 340 MHz

Features
 Connects an HDMI cable to another HDMI cable or display
 Supports 4K resolution
 Convenient 90° downward angle allows for easy connection in the most inconvenient places; e.g., tight corners, difficult ports
 Gold-plated contacts for best performance
 Intended for use with Manhattan HDMI cables

Specifications
Bandwidth: 10.2 Gbps
340 MHz
Meets or exceeds existing HDMI standards
Length: 4 cm (1.6 in.)

Connectors
HDMI A female, 19-pin gold-plated contacts
HDMI A male, 19-pin gold-plated contacts

Electrical
Current rating: 0.5 ADC
Withstanding voltage: 300 VDC
Insulation resistance: 5 M
Conductive resistance: 2

General
Length (overall): 36 x 23 x 20 mm (1.4 x 0.9 x 0.8 in.)
Weight: 10 g (0.35 oz.)
Moulded PVC

Package Contents
HDMI Adapter, A to A
