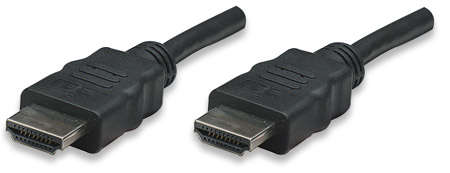

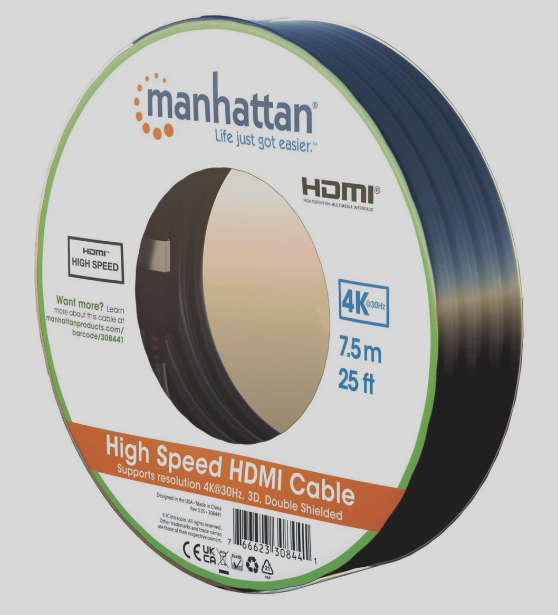

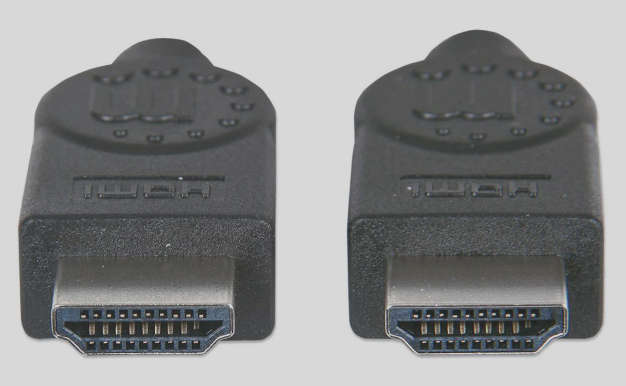

Manhattan High Speed HDMI Cable

High-speed cables deliver high-definition performance.

HDMI has become the standard digital connection, delivering the highest-quality audio and video signal over a single cable. Manhattan High Speed HDMI Cables are designed and carefully constructed to meet the evolving needs of the high-definition marketplace. Manhattan High Speed HDMI Shielded Cables provide 1080p resolution and a bandwidth of 10.2 Gigabits per second at 340 MHz. These high-quality cables provide high-definition video and multichannel, digital audio with increased performance characteristics, greater accuracy and expanded features.

Supports 1080p resolution and Deep Color

Compatible with any HDMI device, such as Blu-ray, game consoles, stereos and PCs

Compliant with High Speed HDMI specifications

Up to 10.2 Gbps at 340 MHz bandwidth

Double shielded to reduce EMI and other interference sources

Molded PVC boot

Lifetime Warranty

Standards and Certifications

UL 20276

ISO9002

General

Bandwidth: 10.2 Gbps

340 MHz

Meets or exceeds existing HDMI standards

Length: 7.5 m (25 ft.)

Contacts

2 HDMI 19-pin male

Nickel-plated contacts

Molded PVC boot

Double shielded

30 AWG cable

Electrical

Current rating: 0.5 A DC

Withstanding voltage: 300 VDC

Insulation resistance: 5 M

Conductive resistance: 5

Package Contents

High Speed HDMI Cable
