Manhattan SuperSpeed USB 3.0 Bay Mount Expansion Panel - 2 Ports, 20-pin header connection, Retail Box, Limited Lifetime Warranty
Converts an empty 3.5" bay into a USB hub.
Product Overview

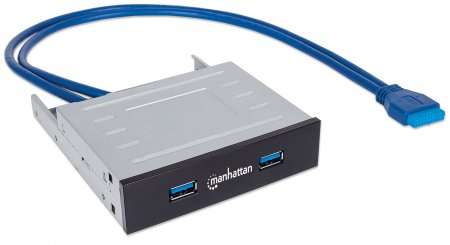

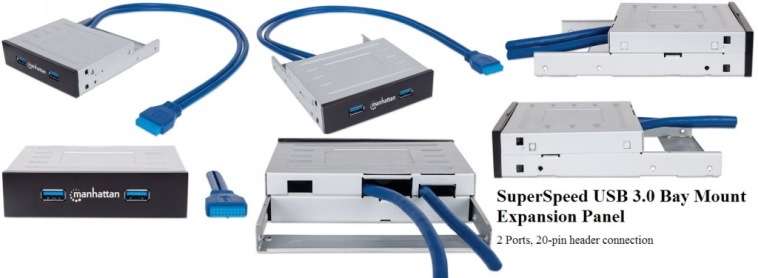

The Manhattan SuperSpeed USB 3.0 Bay Mount Expansion Panel [Model Number: 162661] brings USB convenience to the front of a desktop computer. It easily converts an empty, unused 3.5" bay into a two-port SuperSpeed USB hub to quickly add USB digital cameras, flash drives, external hard-drive enclosures and more. It's an ideal desktop computer upgrade that provides handy USB connections without the nuisance of moving the PC case for rear panel access or disconnecting cables and devices to free a port. Backwards compatibility supports older devices and provides SuperSpeed USB data transfer speeds up to 5 Gbps.
Easy-to-Add connectivity
Plug and Play and hot-swappable capabilities and included mounting screws help make installation into any 3.5" bay quick and easy.
Features•Convenient front-mount USB 3.0 ports (2), with 20-pin header connector
•Provides 2 SuperSpeed USB 3.0 ports by connecting directly to motherboard; uses legacy 3.5" floppy drive bay
•Supports data transfer rates up to 5 Gbps; backwards compatible with earlier USB versions
•Sturdy, fully enclosed metal housing gives maximum durability and ensures long-term use.
•Plug and play; hot-swappable — Windows and Mac compatible; no drivers required
Specifications
Model Number: 162661
Manhattan SuperSpeed USB 3.0 Bay Mount Expansion Pane
Transfer speeds: 12 / 480 Mbps / 5 Gbps
USB 3.0 Standard-A (2)
Output: Up to 900 mA power per port
Physical
•Dimensions: 10 x 12 x 2.6 cm (4 x 4.8 x 1 in.); 0.2 kg (7 oz.)
•Integrated 20-pin connector cable, 46 cm (18 in.)
•Housing: metal
Environmental
•Operating temperature: 0 – 70°C (32 – 158°F)
•Storage temperature: -40 – 70°C (-40 – 158°F)
•Operating humidity: 50% non-condensing
•Storage humidity: 95% non-condensing
System Requirements
•3.5" front mount bay
•Internal 20-pin USB 3.0 header expansion connection
•Windows XP/Vista/7/8.1/10 and Mac OS 9 or higher
Package Contents
SuperSpeed USB 3.0 Bay Mount Expansion Panel with (4) mounting screws
QIG
