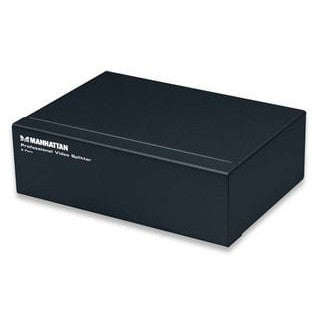

Manhattan VGA Monitor Splitter For 2 Monitor 350MHZ

Manhattan VGA Monitor Splitter For 2 Monitor 350MHZ

New 500 available
R493.35
Shipping
Free shipping is available from GUNMANSA for all orders above R3,000.00, using one of our trusted couriers.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
11176173
Bob Shop ID
647643012
Manhattan VGA Monitor Splitter For 2 Monitor 350MHZ Retail Box Limited Lifetime Warranty
Professional Video Splitter-2-Port, VGA, SVGA, MultiSync

Product Overview

Easily distribute a single VGA signal to multiple displays

The MANHATTAN Professional Video Splitter with built-in booster streams a single VGA signal from a personal computer or other VGA-equipped source to up to two displays. Ideal for trade shows, classrooms, video conferencing and presentations and retail applications, the MANHATTAN Professional Video Splitter is a good choice for splitting and distributing a signal to multiple displays when source equipment is remotely stored in a secured room or cabinet. Cascade multiple units up to three levels to output VGA signals to additional displays in widely distributed applications. The gold-plated contacts and fully-shielded metal case ensure reliable signal transmission with less degradation.

Features
Duplicates a single VGA signal for up to two VGA outputs
Supports VGA bandwidths up to 350 MHz and resolutions up to 1920 x 1680 with effective transmission distance up to 65 m (210 ft.)
Delivers a clear, sharp signal from a PC to VGA, SVGA and MultiSync displays, projectors and more
Cascade up to three levels to expand signal distribution to more displays
Automatic power save helps conserve power until VGA signal is restored
Easy to install requires no configuration



General
LED indicator: Power (green)
Cable length, maximum: 65 m (210 ft.)
Connector input: (1) HD15 male; output, (2) HD15 female
Power adapter: 9 V AC, 300 mA

Signal
Signal bandwidth: 350 MHz
Signal type: VGA, SVGA, multi-sync
Input voltage, minimum: 0.5 V p-p
Input voltage, maximum: 1.0 V p-p
I/O impedance: 75 Ohms

Resolution
Resolution: 1920 x 1680
Horizontal frequency: 30 120 KHz
Vertical frequency: 40 120 Hz

Ports
(1) HD15 male
(2) HD15 female
(1) power port 9 V, 1000 mA

Physical
Enclosure: metal
Dimensions: 133 x 94 x 42 mm (5.2 x 3.7 x 1.65 in.)
Weight: 396 g (14 oz.)

Package contents
Professional Video Splitter
Power Adapter
User manual
