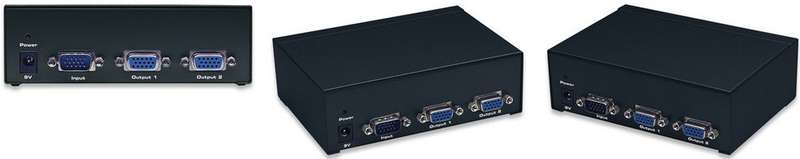

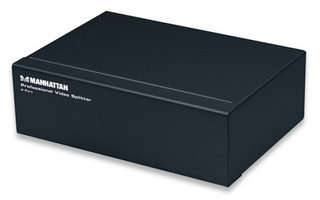

Manhattan VGA Monitor Splitter For 2 Monitor 350MHZ Retail Box Limited Lifetime Warranty
Professional Video Splitter-2-Port, VGA, SVGA, MultiSync
Product Overview

Easily distribute a single VGA signal to multiple displays

The MANHATTAN Professional Video Splitter with built-in booster streams a single VGA signal from a personal computer or other VGA-equipped source to up to two displays. Ideal for trade shows, classrooms, video conferencing and presentations and retail applications, the MANHATTAN Professional Video Splitter is a good choice for splitting and distributing a signal to multiple displays when source equipment is remotely stored in a secured room or cabinet. Cascade multiple units up to three levels to output VGA signals to additional displays in widely distributed applications. The gold-plated contacts and fully-shielded metal case ensure reliable signal transmission with less degradation.
Features
• Duplicates a single VGA signal for up to two VGA outputs
• Supports VGA bandwidths up to 350 MHz and resolutions up to 1920 x 1680 with effective transmission distance up to 65 m (210 ft.)
• Delivers a clear, sharp signal from a PC to VGA, SVGA and MultiSync displays, projectors and more
• Cascade up to three levels to expand signal distribution to more displays
• Automatic power save helps conserve power until VGA signal is restored
• Easy to install — requires no configuration
General
• LED indicator: Power (green)
• Cable length, maximum: 65 m (210 ft.)
• Connector input: (1) HD15 male; output, (2) HD15 female
• Power adapter: 9 V AC, 300 mA

Signal
• Signal bandwidth: 350 MHz
• Signal type: VGA, SVGA, multi-sync
• Input voltage, minimum: 0.5 V p-p
• Input voltage, maximum: 1.0 V p-p
• I/O impedance: 75 Ohms

Resolution
• Resolution: 1920 x 1680
• Horizontal frequency: 30 – 120 KHz
• Vertical frequency: 40 – 120 Hz

Ports
• (1) HD15 male
• (2) HD15 female
• (1) power port 9 V, 1000 mA

Physical
• Enclosure: metal
• Dimensions: 133 x 94 x 42 mm (5.2 x 3.7 x 1.65 in.)
• Weight: 396 g (14 oz.)

Package contents
• Professional Video Splitter
• Power Adapter
• User manual
