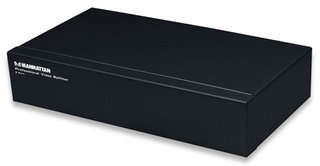

Professional Video Splitter

• 8-Port, VGA, SVGA, MultiSync
• Color: Black

• Item: 207355

PRODUCT OVERVIEW :

Easily distribute a single VGA signal to multiple displays
The MANHATTAN Professional Video Splitter with built-in booster streams a single VGA signal from a personal computer or other VGA-equipped source to up to eight displays. Ideal for trade shows, classrooms, video conferencing and presentations and retail applications, the MANHATTAN Professional Video Splitter is a good choice for splitting and distributing a signal to multiple displays when source equipment is remotely stored in a secured room or cabinet. Cascade multiple units up to three levels to output VGA signals to additional displays in widely distributed applications. The gold-plated contacts and fully shielded metal case ensure reliable signal transmission with less degradation.

FEATURES :

Easily distribute a single VGA signal to multiple displays
The MANHATTAN Professional Video Splitter with built-in booster streams a single VGA signal from a personal computer or other VGA-equipped source to up to eight displays. Ideal for trade shows, classrooms, video conferencing and presentations and retail applications, the MANHATTAN Professional Video Splitter is a good choice for splitting and distributing a signal to multiple displays when source equipment is remotely stored in a secured room or cabinet. Cascade multiple units up to three levels to output VGA signals to additional displays in widely distributed applications. The gold-plated contacts and fully shielded metal case ensure reliable signal transmission with less degradation.

SPECIFICATIONS :

Standards and Certifications
• FCC
• CE
• ISO9002

  General
• LED indicator: Power (green)
• Cable length, maximum: 65 m (210 ft.)
• Connector input: (1) HD15 male; output, (8) HD15 female
• Power adapter: 9 V AC, 300 mA

  Signal
• Signal bandwidth: 350 MHz
• Signal type: VGA, SVGA, multi-sync
• Input voltage, minimum: 0.5 V p-p
• Input voltage, maximum: 1.0 V p-p
• I/O impedance: 75 Ohms

  Resolution
• Resolution: 1920 x 1680
• Horizontal frequency: 30 – 120 kHz
• Vertical frequency: 40 – 120 Hz

  Ports
• (1) HD15 male
• (8) HD15 female
• (1) power port 9 V, 1000 mA

  Physical
• Enclosure: metal
• Dimensions: 203 x 103 x 42 mm (8 x 4 x 1.65 in.)
• Weight: 694 g (24.5 oz.)

  Package contents
• Professional Video Splitter
• User manual
