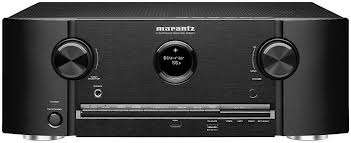

Marantz SR5007 AV Surround Receiver BRAND NEW SEALED
Check my rate
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Product details
Marantz
SR5007
Receiver Audio
&
Video Surround
Audio section
• Power amplifier
Rated output: Front: 100 W + 100 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
Center: 100 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
Surround: 100 W + 100 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
Surround back: 100 W + 100 W (8 Ω, 20 Hz – 20 kHz with 0.08 % T.H.D.)
Maximum effective output power:
Front: 150 W + 150 W (6 Ω, 1 kHz with 10 % T.H.D.)
Center: 150 W (6 Ω, 1 kHz with 10 % T.H.D.)
Surround: 150 W + 150 W (6 Ω, 1 kHz with 10 % T.H.D.)
Surround back: 150 W + 150 W (6 Ω, 1 kHz with 10 % T.H.D.)
Output connectors: 6 – 8 Ω
• Analog
Input sensitivity/Input impedance: 200 mV/47 kâ¦
Frequency response: 10 Hz – 100 kHz — +1, –3 dB (DIRECT mode)
S/N: 100 dB (IHF–A weighted, DIRECT mode)
Video section
• Standard video connectors
Input/output level and impedance: 1 Vp-p, 75 Ω
Frequency response: 5 Hz – 10 MHz — 0, –3 dB
• Color component video connector
Input/output level and impedance: Y (brightness) signal — 1 Vp-p, 75 Ω
PB / CB signal — 0.7 Vp-p, 75 Ω
PR / CR signal — 0.7 Vp-p, 75 Ω
Frequency response: 5 Hz – 60 MHz — 0, –3 dB
Tuner section [FM]
(Note: μV at 75 Ω, 0 dB = 1 x 10–15 W)
Receiving Range: 87.5 MHz – 107.9 MHz
Usable Sensitivity: 1.2 μV (12.8 dB)
50 dB Quieting Sensitivity: MONO 2.8 μV (20.2 dB)
S/N: MONO 70 dB (IHF–A weighted, DIRECT mode)
STEREO 67 dB (IHF–A weighted, DIRECT mode)
Total harmonic Distortion: MONO 0.7 % (1 kHz)
STEREO 1.0 % (1 kHz)
General
Power supply: AC 120 V, 60 Hz
Power consumption: 650 W
Power consumption in standby mode: 0.2 W
Power consumption in CEC standby mode: 0.5 W
Power consumption in network standby mode: 2.7 W
BRAND NEW SEALED WITH WARRANTY
