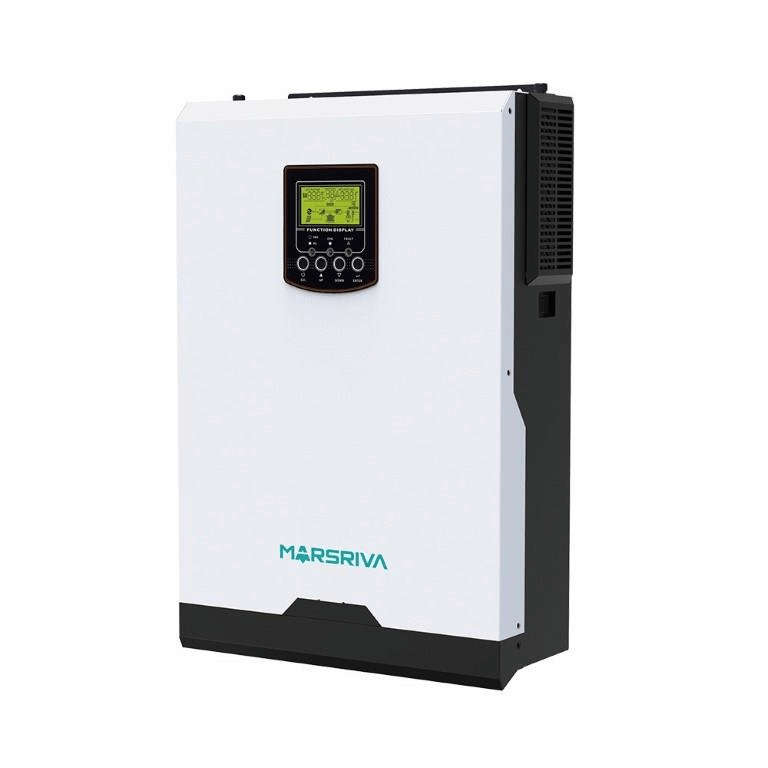

Marsriva 5000VA 5000W Off-Grid Pure Sine Wave Solar Inverter MR-SPF5000
Features
- Pure sine wave solar inverter
- Wide PV input voltage range
- Maximum charging current of 100A
- Reserved communication port for BMS
- Built-in anti-dust kit
- Battery equalization technology optimizes battery performance and extends lifecycle
Technical Specification
Product: Marsriva Off-Grid Pure Sine Wave Solar Inverter
Rated Power: 5000VA / 5000W
Input
Nominal Input Voltage: 230VAC
Input Voltage Range: 170 - 280VAC (For PC); 90 - 280VAC (For Home Appliances)
Nominal Input Frequency: 50Hz / 60Hz (Auto sensing)
Output
Output Voltage Regulation: 230VAC ± 5% (50Hz)
Waveform: Pure sine wave
Transfer Time: 10ms (For PC); 20ms (For Home Appliances)
Surge Power: 10000VA for 5s
Peak Efficiency: 95% at AC mode, 93% at Battery mode
Battery
Nominal Battery Voltage: 48VDC
Bulk Charging Voltage: 58.4VDC (Flooded Battery); 56.4VDC (AGM/GEL)
Floating Charging Voltage: 54VDC
Overcharge Protection: 63VDC
AC Charging & MPPT Solar Charging
AC Charging Algorithm: 3 step
Max. PV Array Power: 5000W
Max. PV Input Current: 18A
PV Array MPPT Voltage Range: 120VDC - 450VDC
Max. PV Array Open Circuit Voltage: 500VDC
AC Charging Current: 100A Max. (-Nominal Input 230VAC)
Max Charging Current: 100A (AC charging plus solar charging)
Physical & Communication
Communication Interface: RS232, BMS, optional Wi-Fi
Dimension, D x W x H: 120 x 300 x 440 mm
Net Weight: 10 kg
