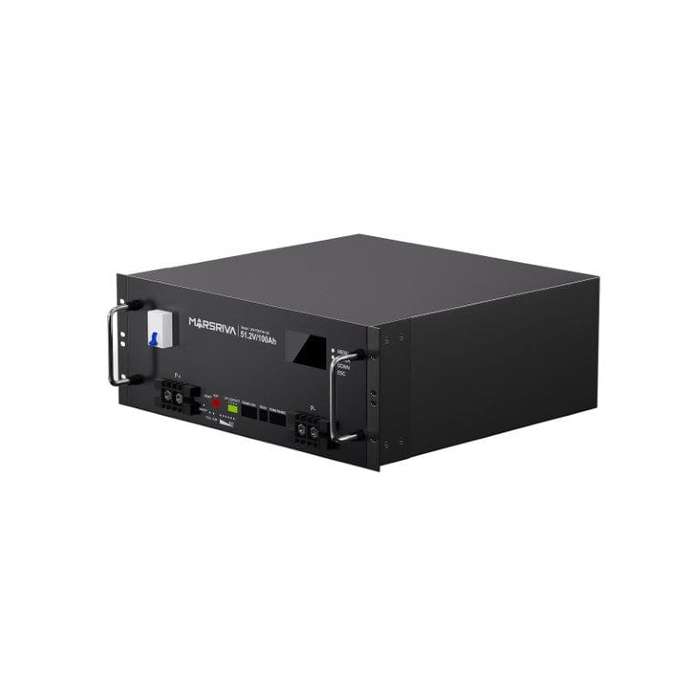

Marsriva 51.2V 100Ah Storage LiFePO4 Battery Module MR-PBLF48 100
Energy Storage LiFePO4 Battery use high-level LiFePO4 Cells with higher energy density, more stable performance, and greater power. The LiFePO4 Battery offers more than 3500 cycles at 100% DoD. It is suitable for solar and wind renewable energy storage etc.
Features
- Complete with Battery Management System built-in
- Environmental Friendly, without any heavy metals
- Easy installation, can be in 19-inch standard cabinet or be wall-mounted
- Thousands of cycles, under normal conditions
- Low self discharge rate of 2 years before required recharging
- Can use most standard VRLA chargers for this system
- Built-in automatic protection for over-charge, over-discharge & over-temperature conditions
- Intra-system balancing
- Flame retardant system to UL94V-0
- Good high temperature performance
- Safe Lithium Iron Phosphate Technology
- High cycle times and long service life
- High energy density and conversion efficiency
Technical Specification
Product: Marsriva Energy Storage LiFePO4 Battery
Rated Capacity (5HR): 100 Ah
Nominal Voltage: 51.2 V
Discharge Ending Voltage: 43.2 V
Charging Limited Voltage: 57.6 V
Max. Charging Current: 100 A
Max. Continue Discharging Current: 100 A
Weight: Approx. 46 Kg
Display: With display screen
Protocol: CANBUS/ MODBUS
Parallel Connection: Parallel connection is optional (up to 15P).
Dimensions (W*D*H) mm (inches): 442 (17.40") * 431 (16.97") * 177 (6.99")
Cell: 3.2V 100Ah
Design Life: More than 20 years
Cycle Life: More than 3500 cycles at 100% DOD.
IP Class: IP31
Outer Package Material: Black bake lacquer steel case (battery rack or cabinet is optional)
Operating Temperature: Charging: 0 to +60°C Discharging: -20 to +60°C Storage: -20 to +60°C
