Description :
MASTECH MS3302 AC Current 0.1A-400A Clamp Meter Transducer
Brand Name : MASTECH
Model Number : MS3302
Dimensions : 143 x 73 x 35mm
This is an AC/DC current transducer. When any DMM is at DCV range, connecting the plug of the transducer to DMM. We can do the AC/DC current measurement.
Specification :
Current range : 0.1A - 400A A.C. RMS
Output voltage levels : 10mV/A : 1mV a.c. per 0.1 Amp a.c.
1mV/A : 1mV a.c. per 1 Amp a.c.
Working voltage : 600V CAT.II per IEC 1010 - 1
Operating temperature : 0 to 50 < 80 percent relative humidity
Storage temperature : -20 to 60 ¿¿¿
Type of sensing : induction coil sensing for AC current
Maximum output impedance : 45W
Maximum jaw opening : 29mm
Maximum conductor size : 28mm
Size : 64(W)×143(L)×30(D)
Package included :
1 x MASTECH MS3302 Current Transducer

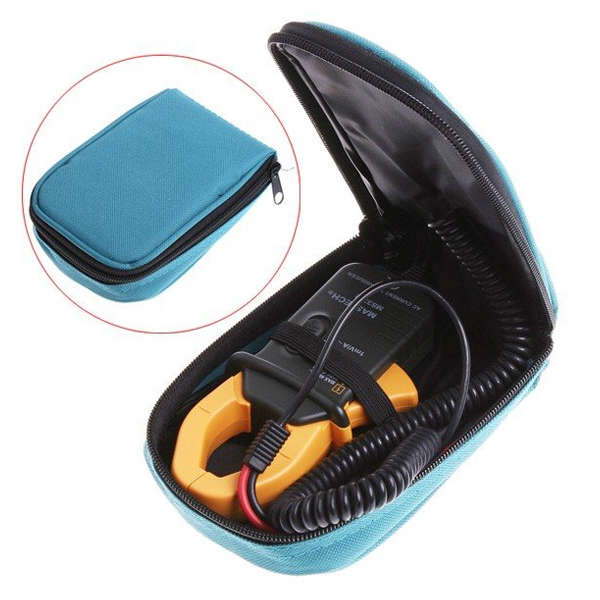

1 x Portable bag

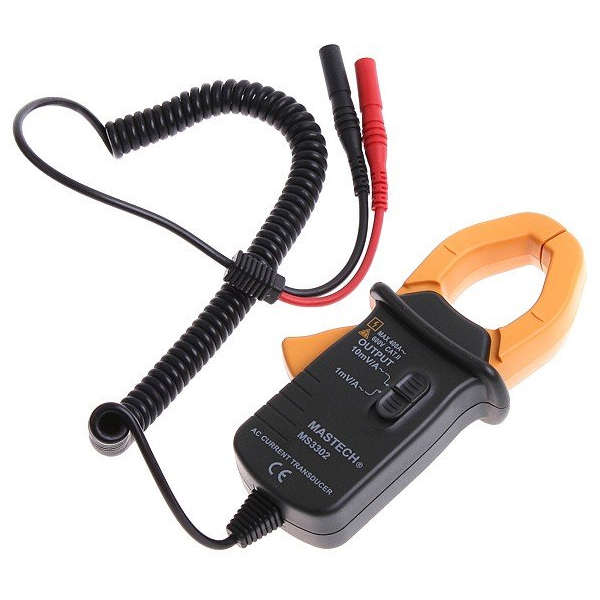

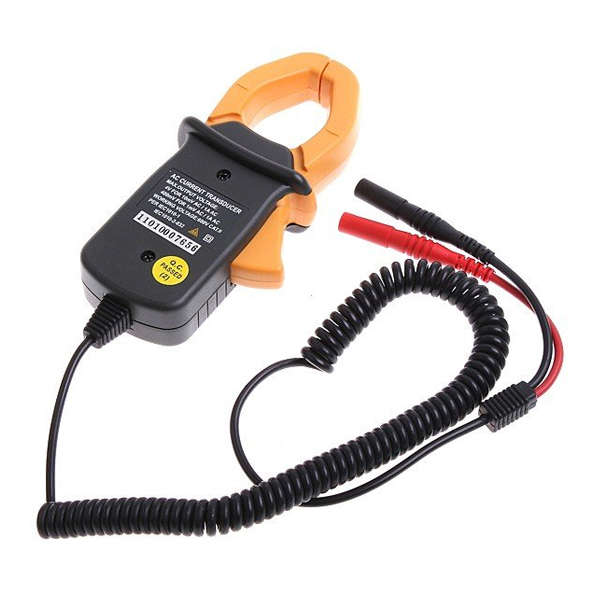

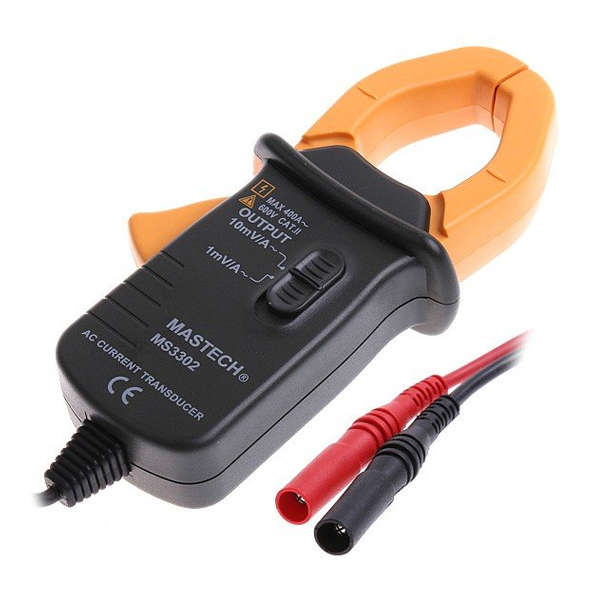

Details pictures :
