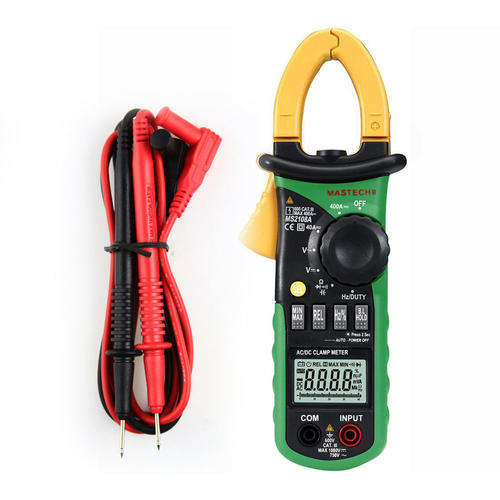

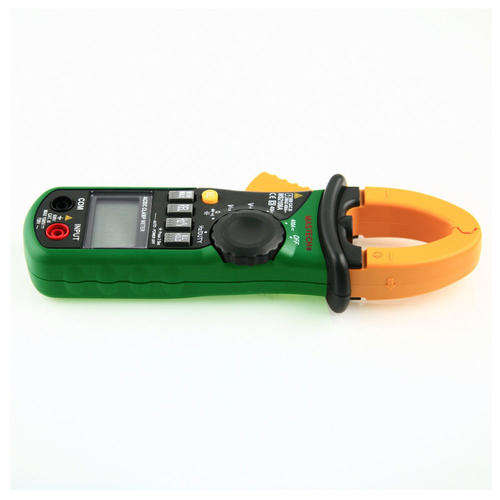

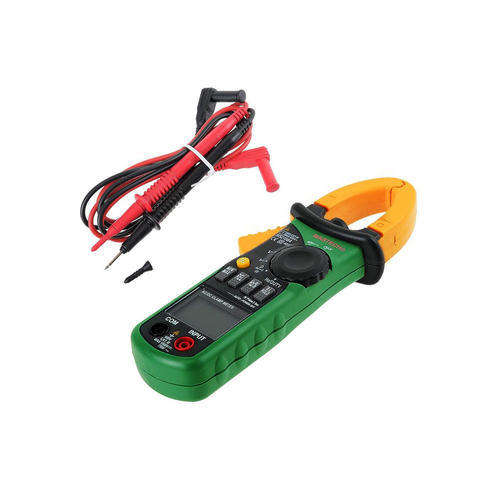

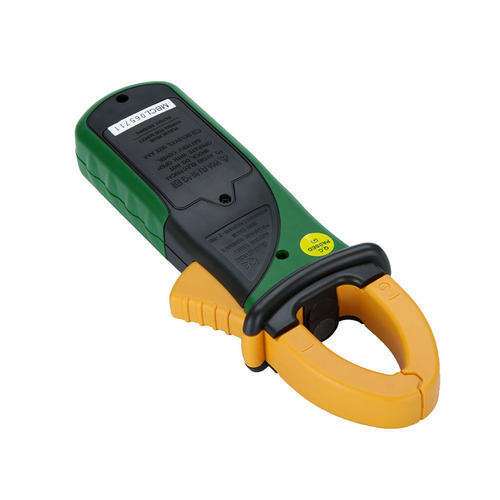

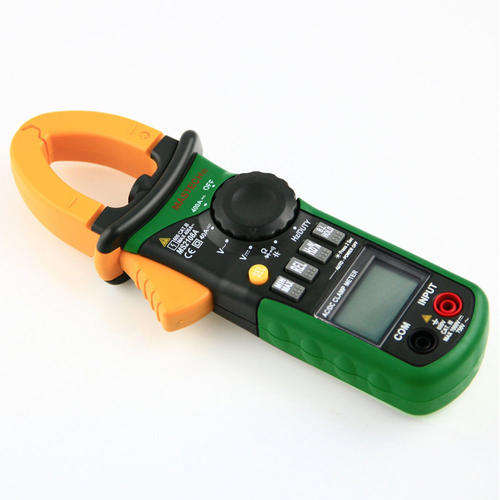

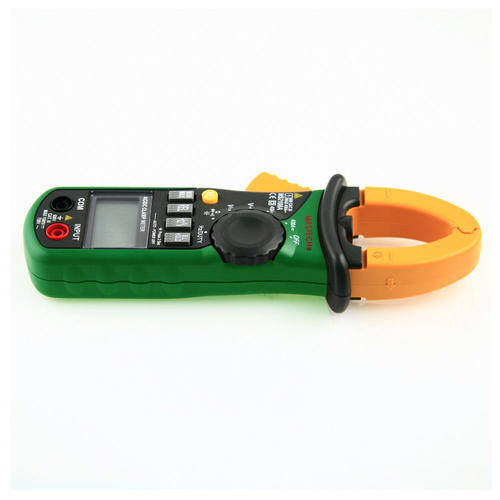

MASTECH Professional MS2108A 4000 AC DC Current Clamp Meter LCD Backlight

Features:

1. Perform measurements of AC/DC voltage and current, resistance, frequency, duty, capacitance, as well as

continuity and diode test.

2. Display: 4000 counts with analog bar LCD display

3. Maximum voltage between terminals and earth ground: DC 1000V or AC 750V

4. Over range protection for all ranges

5. Reading hold function

6. Square value measuring function (at AC A and AC V range)

7. Auto zero function (at DCA range)

8. Maximum & minimum value measuring function

9. Converte rate: 3 times/sec

10. Bar graph: 30 times/sec

11. Auto power off

12. Continuity test

13. Diode test

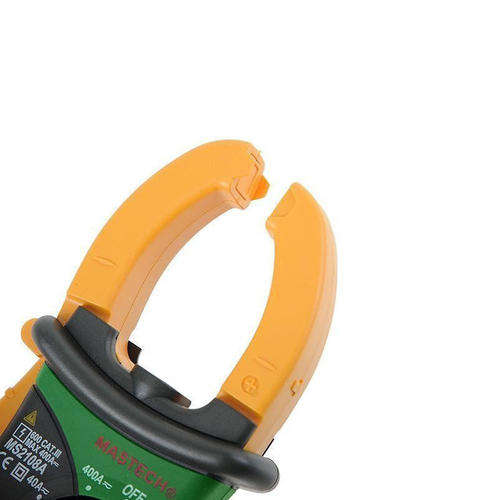

14. MAX. diameter for conductor: Ф26mm

15. Secondary injection molding case

16. Conform to the IEC1010-1 & IEC1010-1-032 standards

Specification:

Model: MS2108A

Double Insulation: Protection class CAT III 600V and pollution degree 2

Display: 4000 counts

DC Voltage Accuracy: 400mV±0.1%;4V/40V/400V±0.7%;1000V±0.8%

AC Voltage Accuracy: 4V/40V/400V±0.8%;750V±1.0%

DC Current Accuracy: 40A/400A ±2%

AC Current Accuracy: 40A/400A ±2%

Resistance Accuracy: 400Ω/4kΩ  /40kΩ

/400kΩ/4MΩ± 0.8%,40MΩ±1.2%

Capacitance: 40nF/400nF/4μF/40μF /400μF /4000μF±4%

Frequency Accuracy: 10Hz/100Hz/1KHz/10kHz/100kHz/1MHz/10MHz±1.5%, 10~10KHz±2%

Duty cycle: 0.1% ~ 99% ±3%

Operating Temperature:0℃ ~ 40℃ (32°F ~ 104°F)

Storage Temperture:-10℃ ~ 50℃(10°F ~ 122°F)

MAX. diameter for conductor: Ф26mm

Dimension: 208mm x 78mm x 35mm

Power: 1.5V (AAA) x 3(Not included)

Package included:

1PC x Clamp Meter

1PC x Set of Test Leads

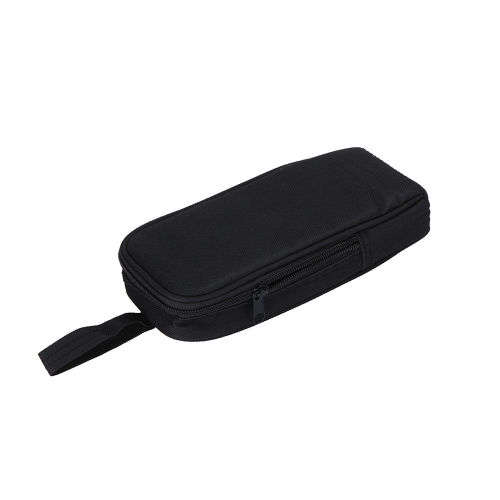

1PC x Carry Bag

1PC x User Manual
