Features:
1. Perform measurements of AC/DC voltage and current, resistance, frequency, duty, capacitance, as well as
continuity and diode test.
2. Display: 4000 counts with analog bar LCD display
3. Maximum voltage between terminals and earth ground: DC 1000V or AC 750V
4. Over range protection for all ranges
5. Reading hold function
6. Square value measuring function (at AC A and AC V range)
7. Auto zero function (at DCA range)
8. Maximum & minimum value measuring function
9. Converte rate: 3 times/sec
10. Bar graph: 30 times/sec
11. Auto power off
12. Continuity test
13. Diode test
14. MAX. diameter for conductor: Ф26mm
15. Secondary injection molding case
16. Conform to the IEC1010-1 & IEC1010-1-032 standards
Specification:

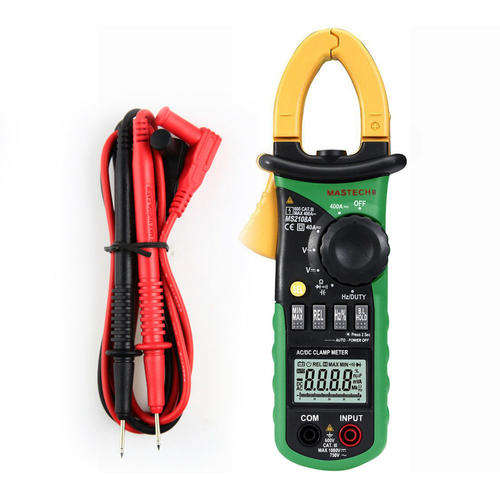

Model: MS2108A
Double Insulation: Protection class CAT III 600V and pollution degree 2
Display: 4000 counts
DC Voltage Accuracy: 400mV±0.1%;4V/40V/400V±0.7%;1000V±0.8%
AC Voltage Accuracy: 4V/40V/400V±0.8%;750V±1.0%
DC Current Accuracy: 40A/400A ±2%
AC Current Accuracy: 40A/400A ±2%
Resistance Accuracy: 400Ω/4kΩ /40kΩ
/400kΩ/4MΩ± 0.8%,40MΩ±1.2%
Capacitance: 40nF/400nF/4μF/40μF /400μF /4000μF±4%
Frequency Accuracy: 10Hz/100Hz/1KHz/10kHz/100kHz/1MHz/10MHz±1.5%, 10~10KHz±2%
Duty cycle: 0.1% ~ 99% ±3%
Operating Temperature:0â ~ 40â (32°F ~ 104°F)
Storage Temperture:-10â ~ 50âÂÂ(10°F ~ 122°F)
MAX. diameter for conductor: Ф26mm
Dimension: 208mm x 78mm x 35mm
Power: 1.5V (AAA) x 3(Not included)
Package included:
1PC x Clamp Meter
1PC x Set of Test Leads
1PC x Carry Bag
1PC x User Manual
Warranty:7 days one-off return-to-base warranty (Note: return-to-base warranty is that you pay your shipping to send the faulty product back and we pay ours to send you a replacement) for manufacture fault unless otherwise stated in the auctions.Faulty goods must be advisedwithin 7 day of receipt, and faulty goods must be returned in original condition and packaging. Warranty does not cover the damages due to physical, water, fire, user's mis-uses, problem of compatibility, and etc.
