Matek CRSF to PWM converter - CRSF-PWM-6

6 available / new
R168.75
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
MAT065
Bob Shop ID
619972870

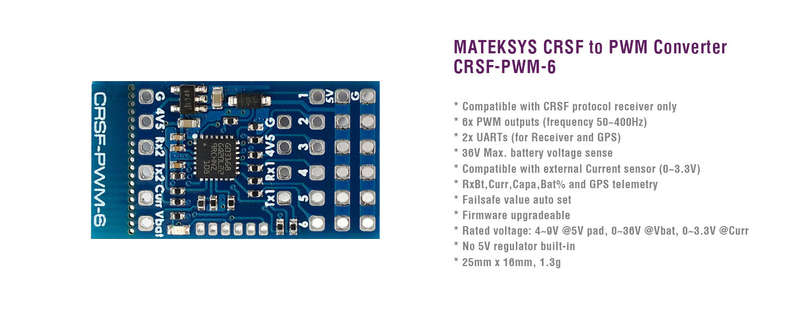

CRSF-PWM Converter, CRSF-PWM-6

  • Compatible with CRSF protocol receiver only
  • Support any CRSF protocol receivers (including 433MHz, 868MHz, 915MHz, 2.4GHz)
  • 6x PWM outputs
  • PWM frequency configurable (50Hz default, 100,160,330, 400Hz)

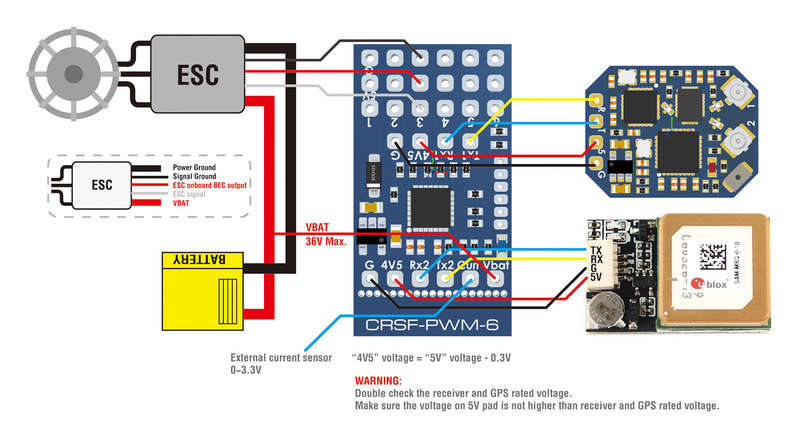

  • 2x UARTs (for Receiver and GPS)
  • Telemetry ID: RxBt, Curr, Capa, Bat%, GPS, GSpd, Hdg, Alt, Sats
  • 36V Max. battery voltage sense (1K:10K voltage divider built-in)
  • Compatible with external Current sensor (0~3.3V)
  • Vbat and Current sensor scale configurable
  • Failsafe value auto set
  • Firmware upgradeable
  • Rated voltage: 4~9V @5V pad, 0~36V @Vbat, 0~3.3V @Curr
  • No 5V regulator built-in, Servos must be powered via 5V pad by external 5V source.

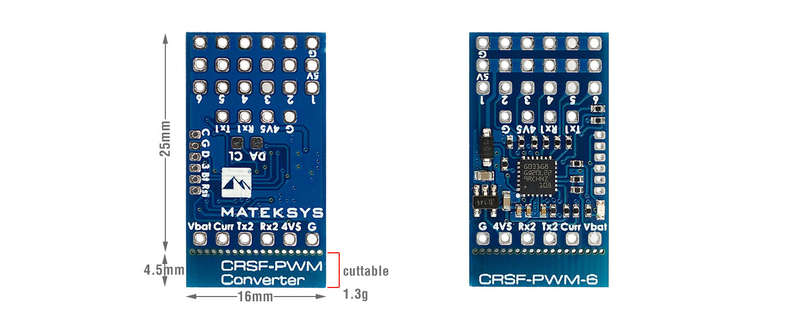

  • 25mm x 16mm, 1.3g
  • Packing: 1x CRSF-PWM-6, Dupont 2.54 pins
