Name: Matek Digital AirSpeed sensor ASPD-AUAV
SKU: MAT078
Price: 2948.75 ZAR
Availability: InStock

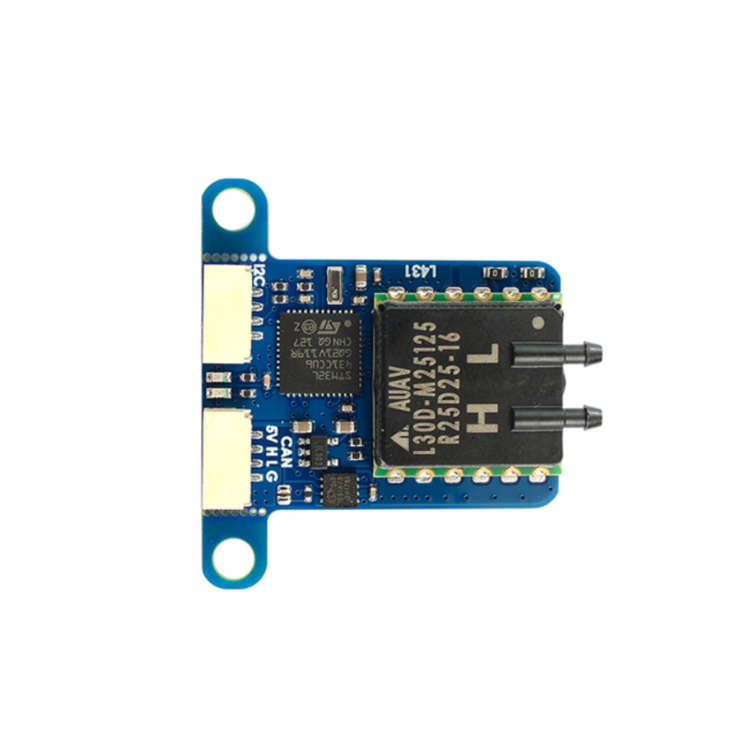

Matek Digital AirSpeed sensor ASPD-AUAV

New

5 available

Only 5 left – grab it before it’s gone!

R2,948.75

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

FlyingRobot450

100.00 % Positive ratings

Buyer protection

How you're covered

Get it now, pay later

Condition

New

Location

South Africa

Product code

MAT078

Bob Shop ID

676774072

Specifications & Features

ArduPilot AP_Periph L431 CAN node
All sensors AUAV-L30D
CAN & I2C Interface
CAN JST-GH connector, DroneCAN Protocol
I2C JST-GH connector, AUAV-L30D I2C mode
TX2, MSP protocol
CAN bootloader LED, Blue
- Fast blinking, AP_Periph bootloader
- Slow blinking, CAN Node ready
3.3V Power LED, Red
Input voltage range: 4.5~5.5V
Power consumption: 26mA
Operating Temperatures: -30°C to 85°C
Pressure Range: 7500Pa (± 30 inH2O)
Burst Pressure: 103kPa
Speed Range: 400 km/h(111 m/s)
36mm*32mm*7.3mm
5g
3D step file ASPD-AUAV_STEP.zip

Includes

1 x ASPD-AUAV
2 x JST-GH-4P to JST-GH-4P 20cm silicon wire

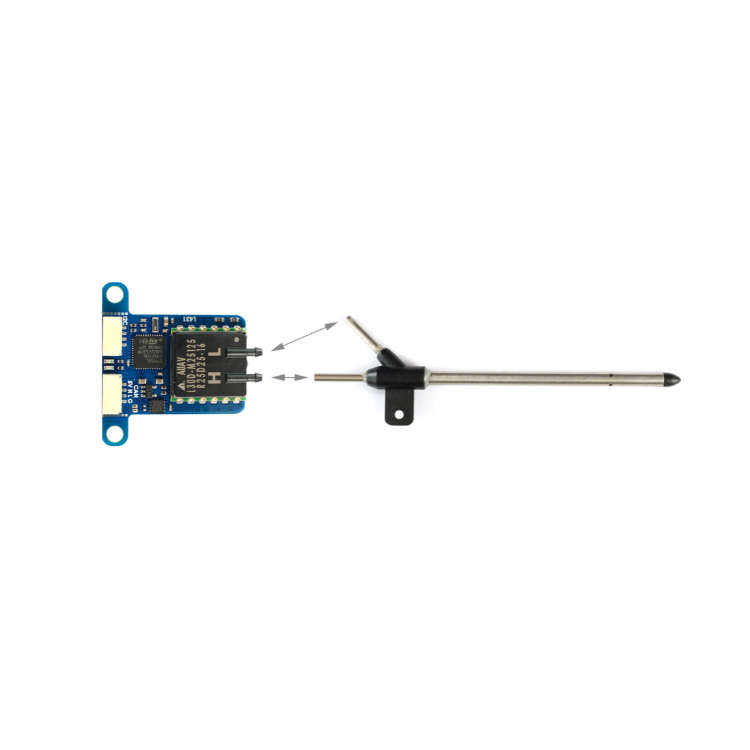

Pitot Tube
Clear silicon tubing 40cm

AP_Periph & DroneCAN protocol

Firmware https://firmware.ardupilot.org/AP_Periph/latest/MatekL431-AUAV/
AP_Periph https://github.com/ArduPilot/ardupilot/blob/master/Tools/AP_Periph/README.md
DroneCAN protocol https://dronecan.github.io/

Wiring and AP Parameters

CAN		or	I2C		or	UART
ASPD-AUAV	FC		ASPD-DUAV	FC		ASPD-DUAV	FC
5V CANH CANL G	4.5-5.5V CAN High CAN Low GND		5V SCL SDA G	4.5-5.5V SCL SDA GND		5V G TX2	4.5-5.5V GND spare UART_RX
ARSPD_USE ARSPD_TYPE	1 8 (UAVCAN)		ARSPD_USE ARSPD_TYPE	1 19 (AUAV-30in)		ARSPD_USE ARSPD_TYPE	1 14 (MSP)
						SERIAL_BAUD SERIAL_PROTOCOL	115 (115200) 32 (MSP)

Tips

CAN Baro is enabled by default, If you don't use the Baro integrated in AUAV, set "BARO_ENABLE = 0" in "Mission Planner -> Initial Setup -> Optional Hardware -> UAVCAN -> MAVlink CANx -> Menu Parameters"
ArduPilot has removed AUAV I2C support by default on flight controller with 1MB flash MCU(such as F405, F745 series).
