Product details

Condition
New
Location
South Africa
Product code
MAT056
Bob Shop ID
626421930

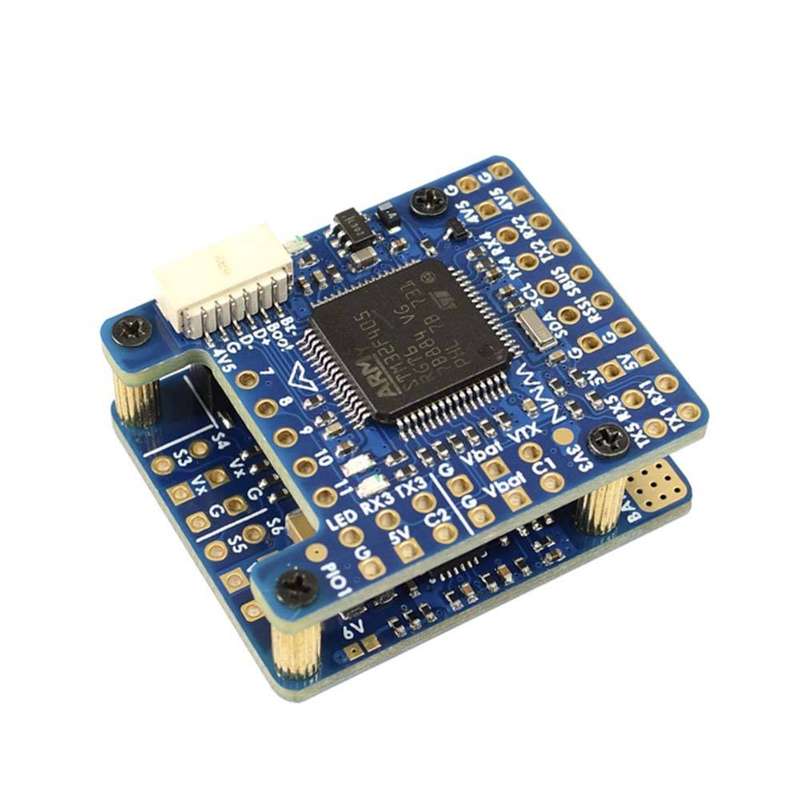

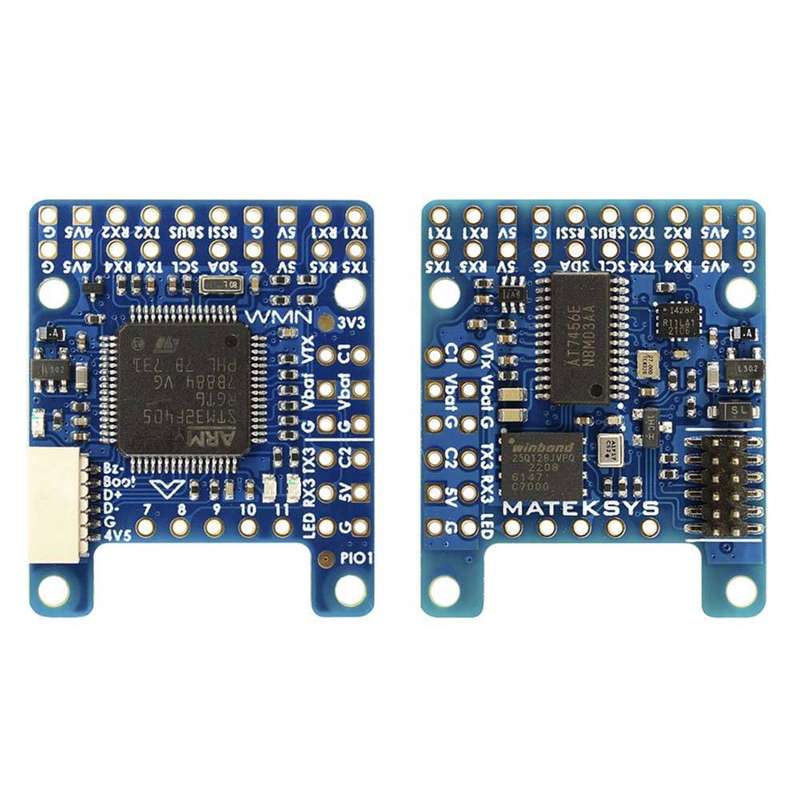

FC Specifications

  • MCU: STM32F405RGT6, 168MHz , 1MB Flash
  • IMU: ICM42688-P
  • Baro: SPL06-001
  • OSD: AT7456E
  • Blackbox: 16M Flash
  • 5x UARTs,  1x Softserial_Tx option(INAV)
  • 12x PWM outputs
  • 1x I2C
  • 3x ADC (VBAT, Current, RSSI)
  • 1x spare PINIO
  • USB/Beep Extender with Type-C(USB2.0)
  • Built in inverter on UART2-RX for SBUS input
  • Switchable Dual Camera Inputs

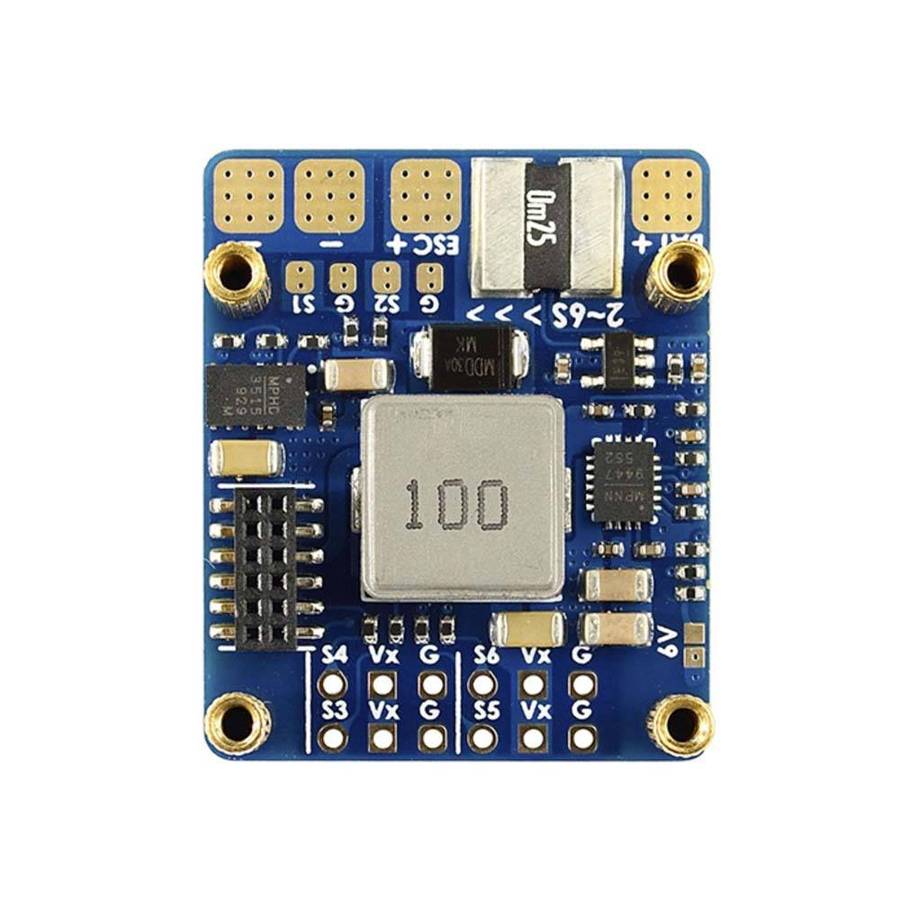

Power

  • 6~30V DC IN (2~6S LiPo)
  • 132A Current Sense (INAV Scale 250, ArduPilot 40A/V)
  • PDB/Current sense resistor: 90A continuous, 132A burst.
  • BEC 5V 1.5A for FC & Peripherals
  • BEC Vx 5A for servos, 5V/ 6V option
  • Vbat for VTX and camera
  • LDO 3.3V 200mA
  • Battery Voltage Sensor: 1k:20k

FC Firmware

  • ArduPilot: MatekF405-TE
  • INAV: MATEKF405TE (INAV 5.0 or newer)

Physical

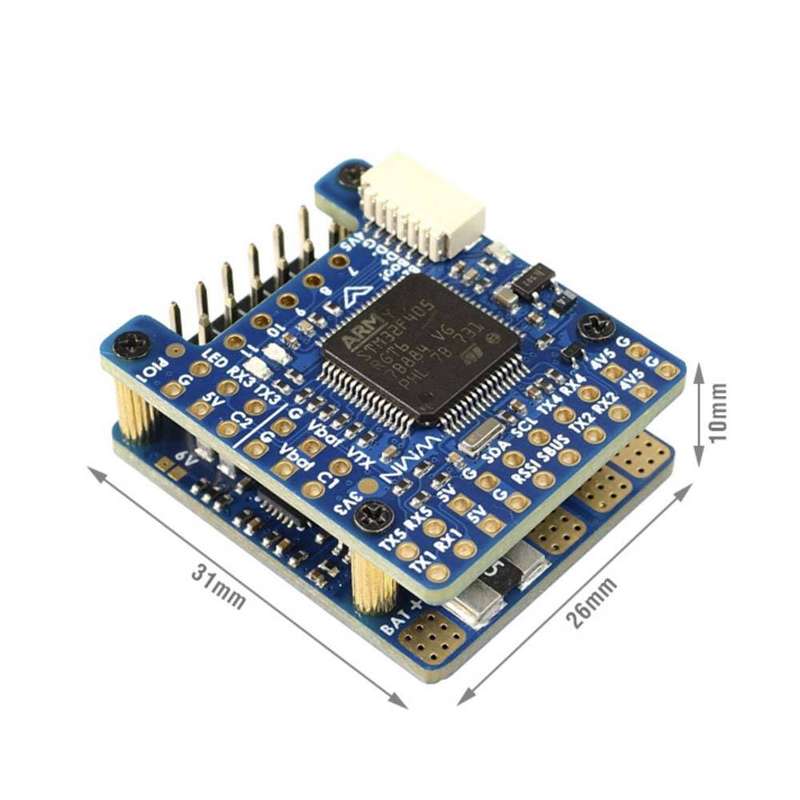

  • Dimensions: 31 x 26 x 16.5 mm
  • Mounting: 22 x 22mm, 2mm
  • Weight: 10g

Including

  • 1x F405-WMN
  • 1x USB(Type-C)/Beep (Passive buzzer) Extender + 20cm JST-SH-6P to JST-SH-6P cable for USB extender.
  • Dupont 2.54 pins  (Board is shipped unsoldered)
