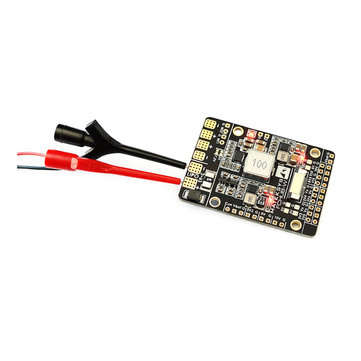

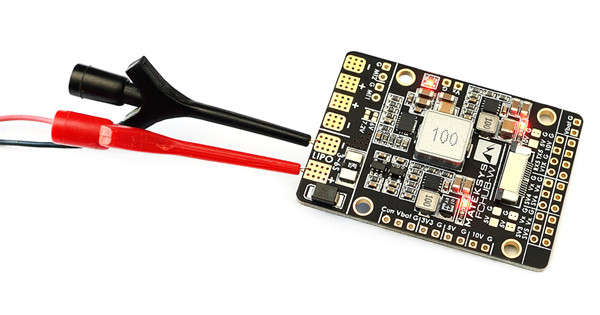

Matek FCHUB-W PDB 3-6S Built-in 4 BEC & 104A Current Sensor for RC FPV Racing Drone

Matek FCHUB-W Fixed Wings PDB 3-6S Built-in 4 BEC & 104A Current Sensor for RC FPV Racing Drone







Specification ():
Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
Current Senor: 104A, 3.3V ADC, Scale 317 Mounting: 30.5 x 30.5mm, ?|3mm Dimensions: 52 x 36 x 6 mm Weight: 13g 2x ESC power pads 4x BEC on board 3x LED indicators for 5V, 10V & Vx

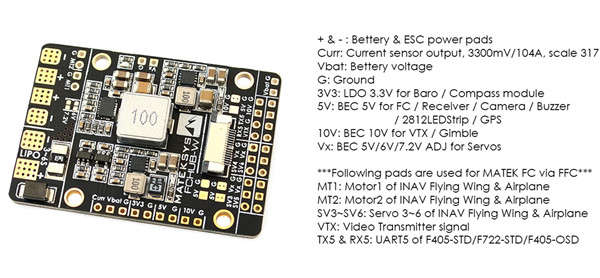

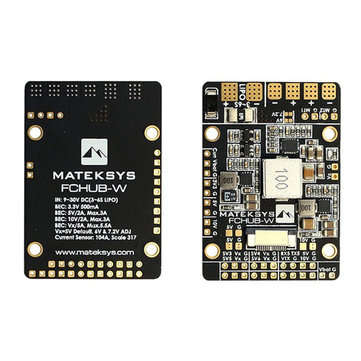

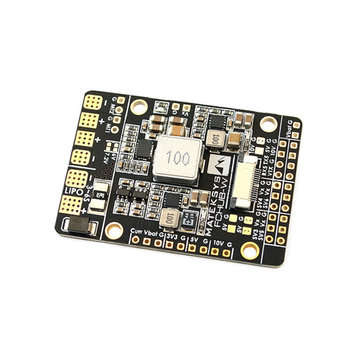

Soldering Holes & Pads: + & a?? : Bettery & ESC power pads Curr: Current sensor output Vbat: Bettery voltage G: Ground 3V3: LDO 3.3V 5V: BEC 5V 10V: BEC 10V Vx: BEC 5V/6V/7.2V ADJ

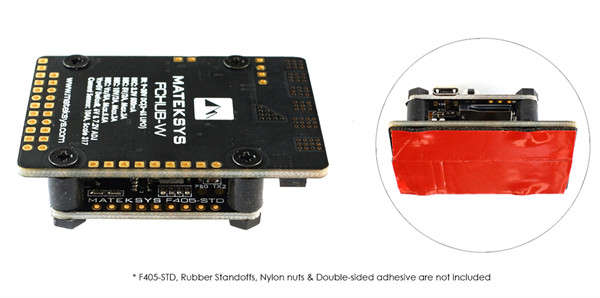

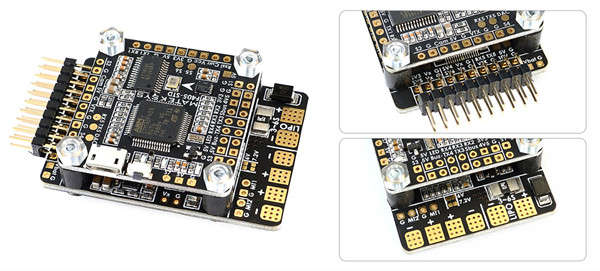

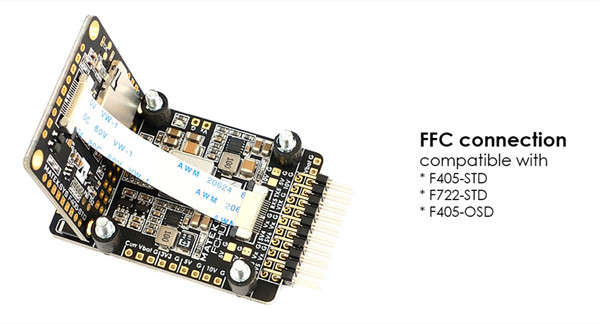

FFC connection: Compatible with MATEKSYS FC F405-STD, F722-STD, F405-OSD MT1: Motor1 of INAV Flying Wing & Airplane MT2: Motor2 of INAV Flying Wing & Airplane SV3~SV6: Servo 3~6 of INAV Flying Wing & Airplane VTX: Video Transmitter signal TX5 & RX5: UART5 of F405-STD/F722-STD/F405-OSD

BEC 5V output: Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, GPS module DC/DC synchronous buck regulator Voltage: 5.0 +/- 0.1VDC Continuous current: 2 Amps, Max.3A Output Ripple: 20mV (VIn=24V, VOut=5V@2A load) Short-circuit tolerant (2 seconds)

BEC 10V output: Designed for Video Transmitter, Gimble DC/DC synchronous buck regulator Voltage: 10.0 +/- 0.2VDC (Input voltage >11V) Continuous current: 2 Amps, Max.3A Output Ripple: 20mV (VIn=24V, VOut=10V@2A load) Short-circuit tolerant (2 seconds)

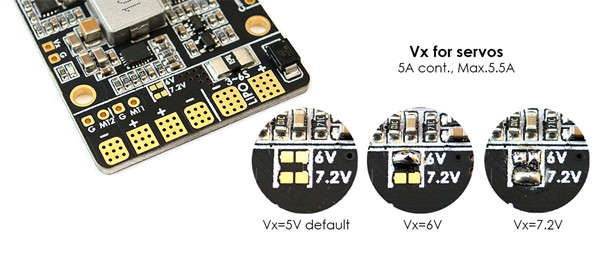

BEC Vx output: Designed for Servos DC/DC synchronous buck regulator Voltage adjustable, 5V Default, 6V or 7.2V via jumper Continuous current: 5 Amps, Max.5.5A Output Ripple: 50mV (VIn=24V, VOut=5V@5A load) Short-circuit tolerant (2 seconds)

BEC 3.3V output Designed for Baro / Compass module and Spektrum RX Linear Regulator Continuous current: 500mA

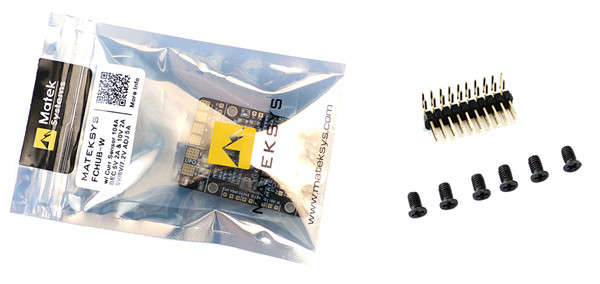

Package included:
1x?Matek FCHUB-W PDB
? ?
?

?
