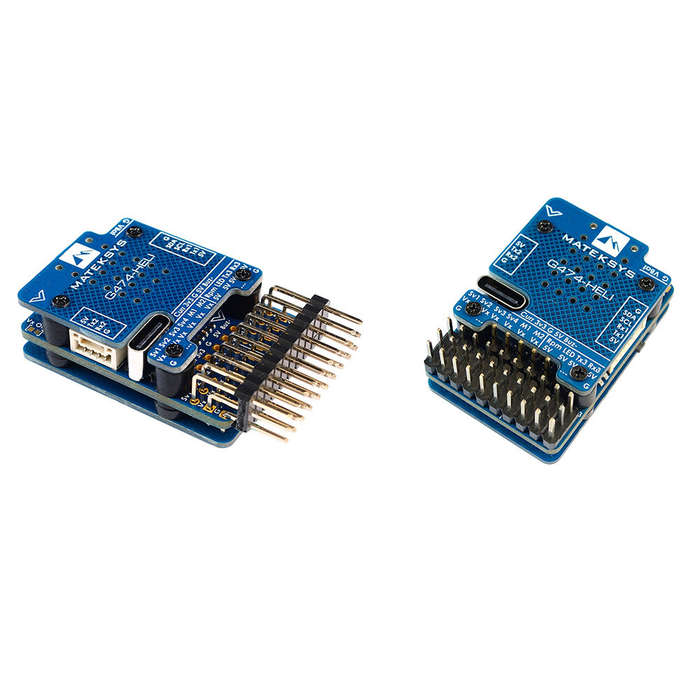

MATEK G474-HELI Balance Flybarless Controller 2-6S LIPO for RC Helicopter MATEK G474-HELI Balance Flybarless Controller 2-6S LIPO for RC Helicopter MATEK G474-HELI Balance Flybarless Controller 2-6S LIPO for RC Helicopter
MATEK G474-HELI Balance Flybarless Controller 2-6S LIPO for RC Helicopter MATEK G474-HELI Balance Flybarless Controller 2-6S LIPO for RC Helicopter MATEK G474-HELI Balance Flybarless Controller 2-6S LIPO for RC Helicopter

MATEK G474-HELI Balance Flybarless Controller 2-6S LIPO for RC Helicopter

New 1 available
Indicative market price: R2,557.92
Only 1 left – grab it before it’s gone!
R1,673.07
35% off
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
There are various locker and counter collection points across South Africa.
View locations
The seller has indicated that they will usually have this item ready to ship within 15 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2004244
Bob Shop ID
652211169

Specifications:

MCU: STM32G474CE, 170MHz Cortex-M4 , 512KB Flash
IMU: ICM42688-P
Baro: SPL06
Blackbox: 128MB Flash
3x UARTs (1, 2, 3)
1x I2C
8x PWM (4x Servos, 2x Motors, RPM, LED)
2x ADC (VBAT, Current)
USB Type-C(USB2.0)

Electrical characteristics:

Input voltage range: 5.4V~30V (2~6S LiPo)
No current sensor integrated, support external 3.3V based current sensor.
Battery Voltage divider 1K:10K (Scale 110)
BEC 5V 2A for FC and peripherals
BEC Vx 5A cont. 8A Peak for servos (5V, 7.2V option)
3.3V 300mA

Firmware/config:

Rotorflight / MATEKG474HELI

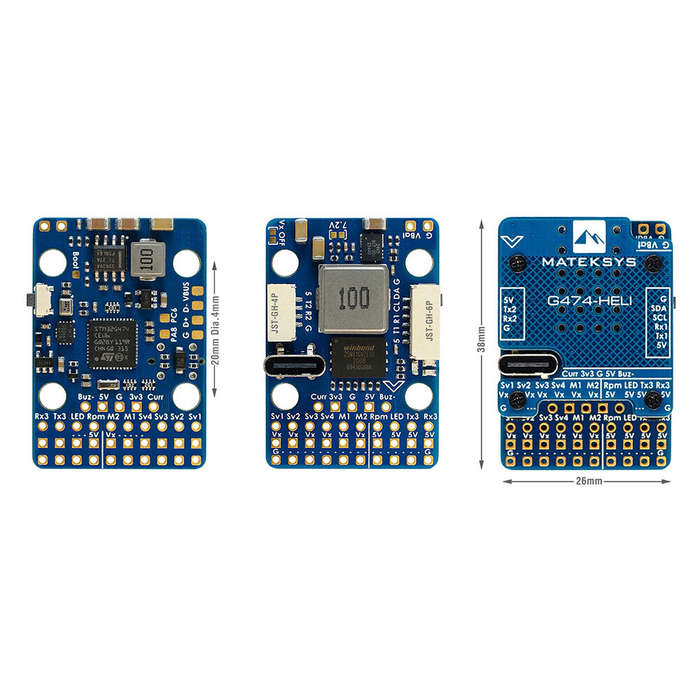

Physical:

Mounting: 20 x 20mm, 4mm with Grommets 3mm

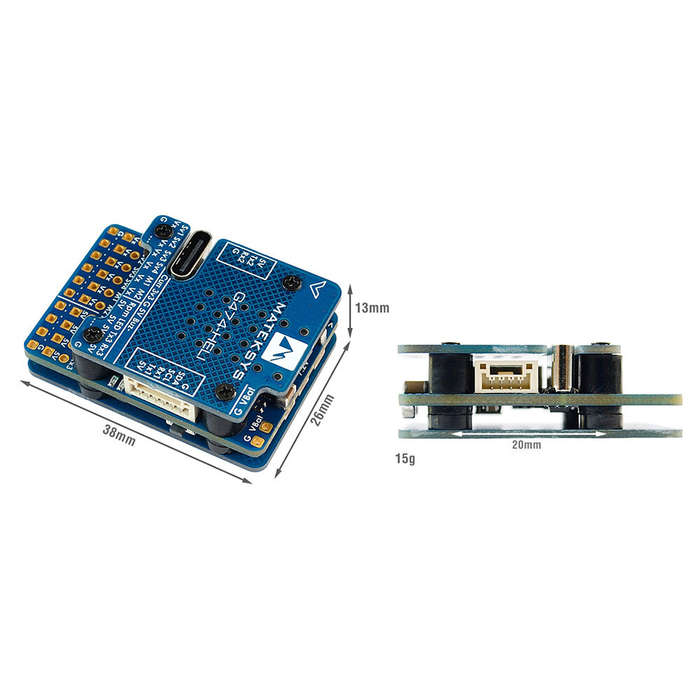

Dimensions: 38 x 26 x 13 mm
Weight: 15g (w/o pins)
3D step file

Including:

1x G474-HELI
1x PicoBlade 1.25mm Servo adapter (M2/S2 servos)
1x 20cm JST-GH-4P to JST-GH-4P cable

Add to cart
