Matek H7A3 SLIM V3 Flight Controller Matek H7A3 SLIM V3 Flight Controller Matek H7A3 SLIM V3 Flight Controller Matek H7A3 SLIM V3 Flight Controller
Matek H7A3 SLIM V3 Flight Controller Matek H7A3 SLIM V3 Flight Controller Matek H7A3 SLIM V3 Flight Controller Matek H7A3 SLIM V3 Flight Controller

Matek H7A3 SLIM V3 Flight Controller

New 5 available
Only 5 left – grab it before it’s gone!
R3,218.75
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller allows collection for this item. Buyers will receive the collection address and time once the order is ready.
The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
MAT034
Bob Shop ID
612483922

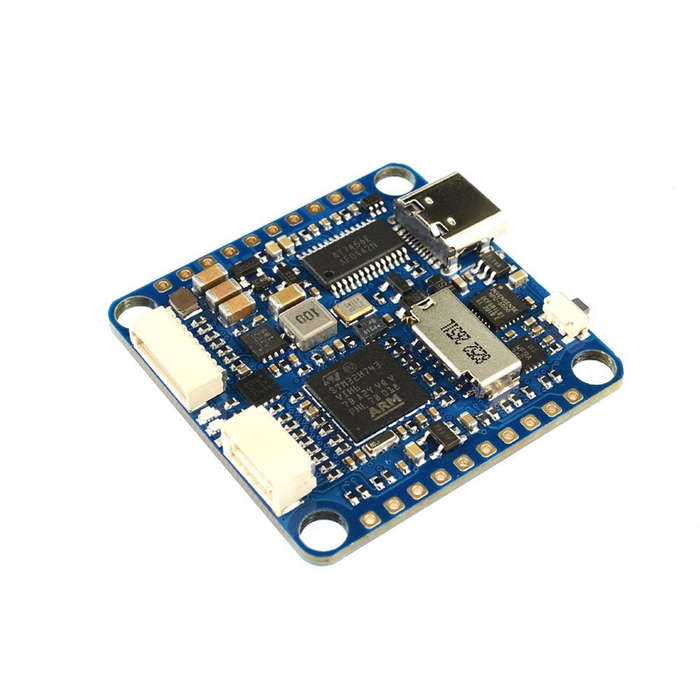

The Matek H7A3-SLIM Flight Controller features STM32H7A3VI, ICM20602 & MPU6000, DPS310, OSD, 7x UARTs, 2x I2C, 1xCAN, 13x PWM outputs, BEC5V and other cool features!

Specifications

  • MCU: STM32H7A3RIT6, 280MHz Cortex-M7, 1.4MB RAM, 2MB Flash
  • IMU: ICM42688P
  • Baro: SPL06-001
  • OSD: AT7456E
  • Blackbox: 128MB Flash (1G-bit NAND)
  • 6x Uarts (1,2,3,4, 5, 6) with built-in inversion.
  • 11x PWM outputs
  • 1x I2C
  • 1x CAN
  • 4x ADC (VBAT, Current, VB2, Cur2)
  • 3x LEDs for FC STATUS (Blue, Red) and 3.3V indicator(Red)
  • USB Type-C(USB2.0)
  • 8x PWM outputs on 2x JST-SH1.0_8pin connector for 2x 4in1 ESC
  • 1x JST-GH1.25_4pin connector (5V/CAN-H/CAN-L/G)
  • 9V output ON/OFF switchable
  • Digital video OSD is supported by any spare UART

Power

  • Vbat Input: 6~36V (2~8S LiPo)
  • BEC: 5V 2A cont. (Max.3A)
  • BEC: 9V 2A cont. (Max.3A)
  • LDO 3.3V: Max.200mA
  • No Current Sensor built-in
  • ADC VB2 pad supports Max. 69V (voltage divider: 1K:20K)

FC Firmware

  • ArduPilot: MATEKH7A3 (4.6 or newer)
  • ArduPlane  https://firmware.ardupilot.org/Plane/beta/MatekH7A3/
  • ArduCopter  https://firmware.ardupilot.org/Copter/beta/MatekH7A3/
  • Flashing with STM32CubeProgrammer

Physical

  • Mounting: 30.5 x 30.5mm, 4mm with Grommets 3mm
  • Dimensions: 36 x 36 x 5 mm
  • Weight: 7g
  • 3D step  H7A3-SLIM_step.zip

Including

  • 1x H7A3-SLIM
  • 6x Silicon grommets M4 to M3
  • 2x JST-SH1.0_8pin cable, 5cm,  & 8pin connectors
  • 1x JST-GH-4P to JST-GH-4P cable for CAN port, 20cm
