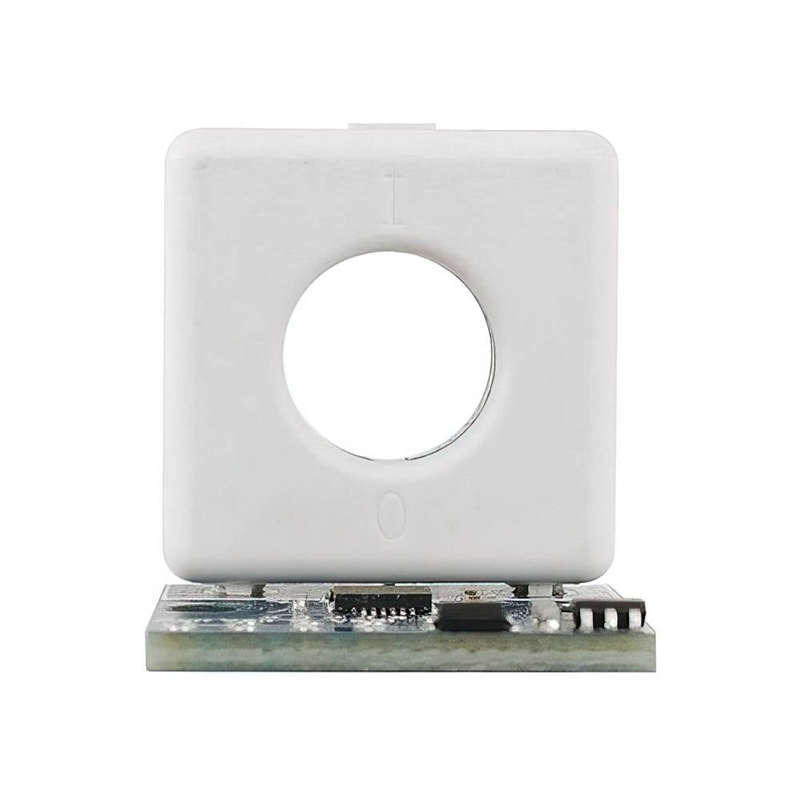

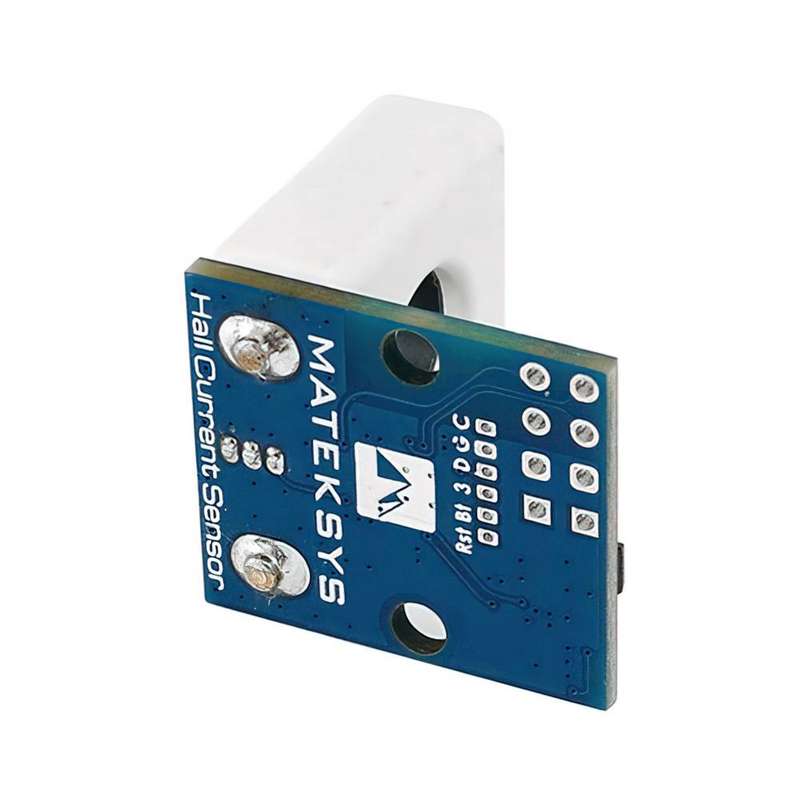

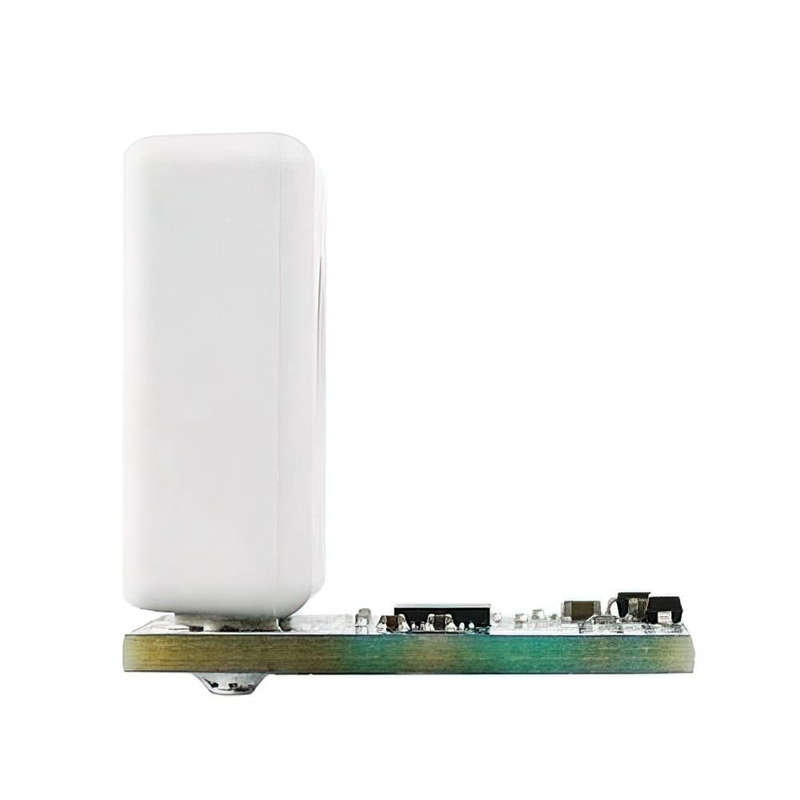

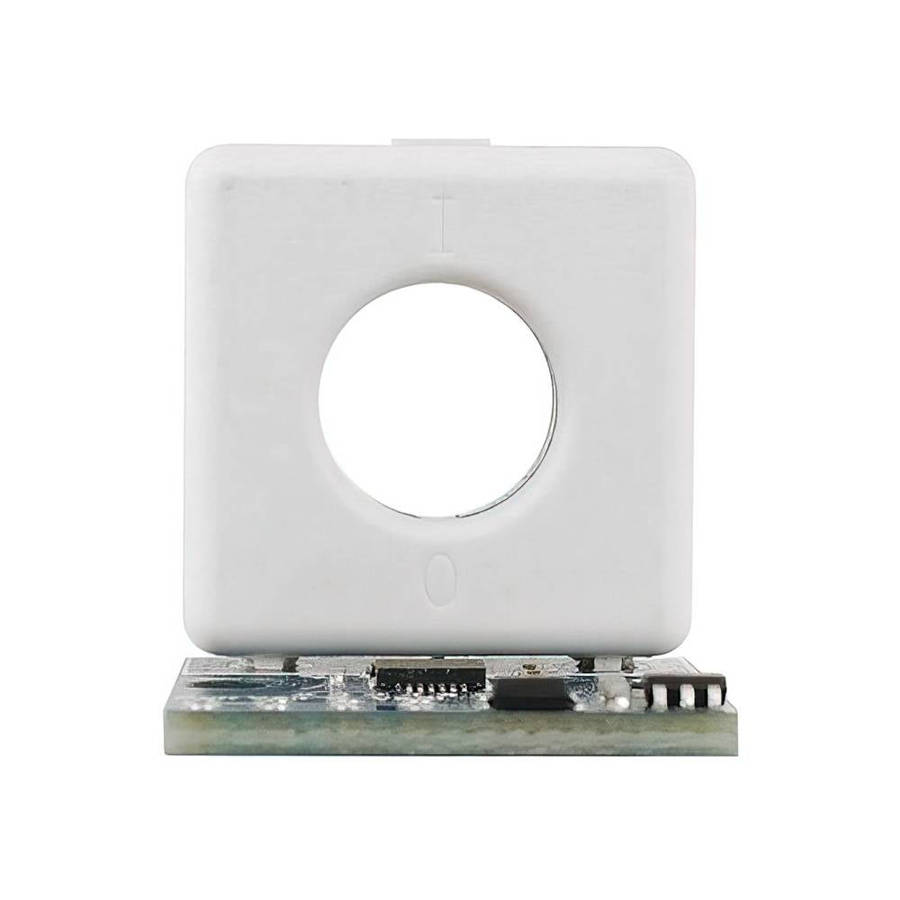

Matek Hall Current Sensor 150A
New
Shipping
Standard courier shipping from R30
R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Free collection from
Westlake business Park, Westlake
The seller allows collection for this item and will be in contact with the full collection address once the order is ready.
Ready for collection by Tuesday, 21 May.
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 3 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Get it now, pay later
Seller
Buyer Protection
Product details
Condition
New
Location
South Africa
Product code
MAT059
Bob Shop ID
612483936
Specifications
- Hall effect current sensor
- No voltage drop and heat on current sensor components
- Offset and Sensitivity are calibrated in factory
- Continuous current rating: 0~150A DC
- Sensitivity: 20mV/A, INAV/BF scale = 200, ArduPilot BATT_AMP_PERVLT = 50
- VBAT voltage sense: 0~69V, INAV scale = 2100, BF scale = 210, ArduPilot BATT_VOLT_MULT = 21.0
- Power Consumption: 17mA
- Voltage offset error at zero current : +-10mV
- Curr output voltage error: 5%
- Operating Temperatures: -30~80 C
- 23 * 20* 23mm, 7g
- step file HCS-150A_step.zip

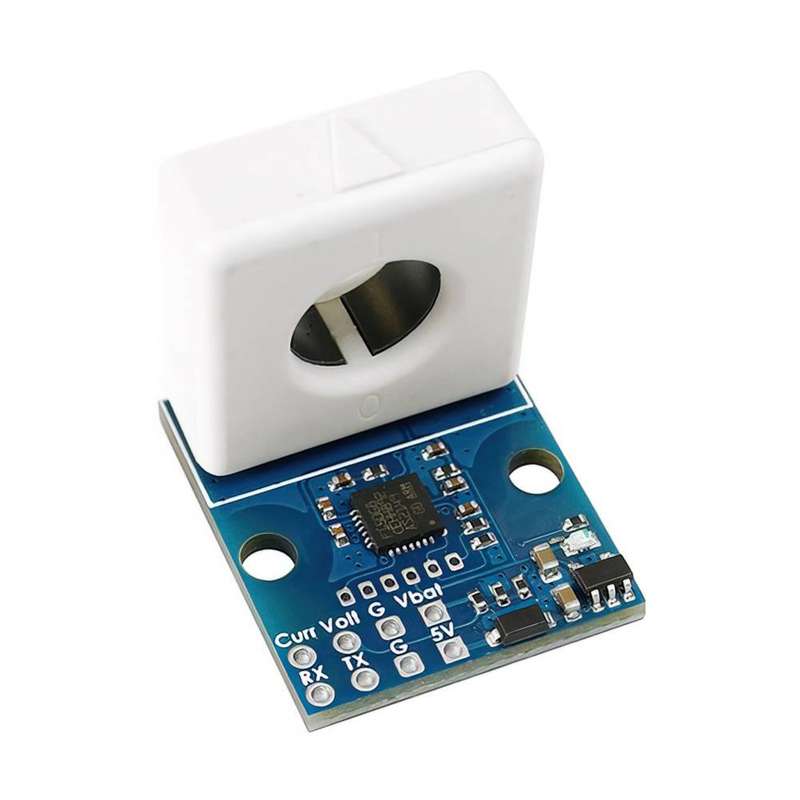

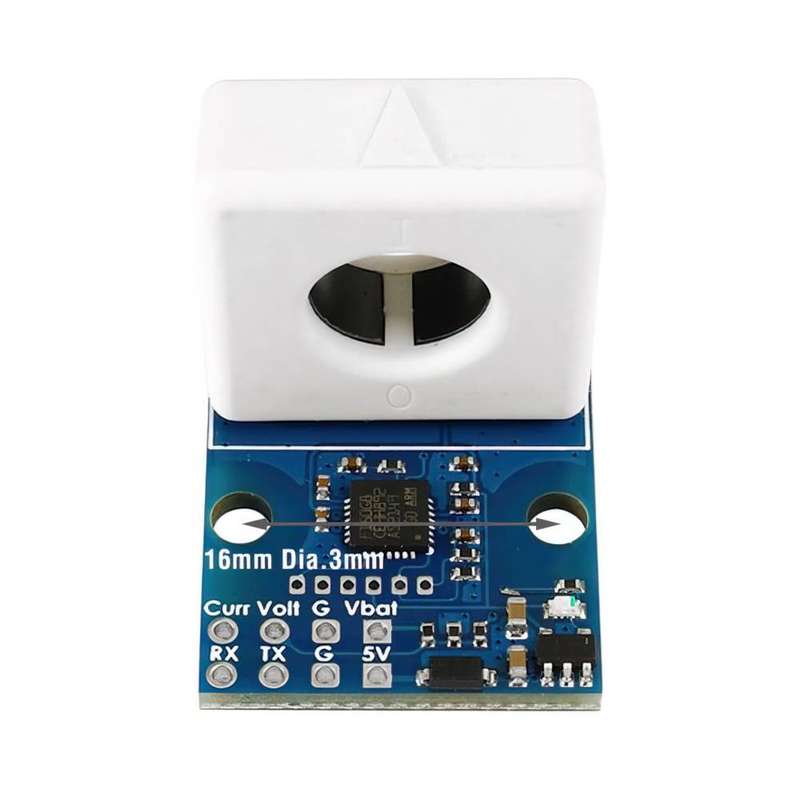

Soldering pads
- Vbat: for voltage sense, support 0~69V IN
- Volt: = 1/21 Vbat, 0~3.3V out
- Curr: Current signal, 0~3.3V out
- 5V: power supply for HCS-150A board, support 4~13V IN, 17mA
- G: GND
- TX/RX: for firmware update and configure (to be supported)
Tips
- mount Hall sensor far from iron and magnetic material
