Matek Micro BEC 6-60V TO 5V/9V/12V-ADJ

Name: Matek Micro BEC 6-60V TO 5V/9V/12V-ADJ
SKU: MAT044
Price: 218.90 ZAR
Availability: InStock

New

Watch

FlyingRobot414

100.00% Positive ratings

Shipping

Standard courier shipping from R30

R30 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate

Free collection from Westlake business Park, Westlake

The seller allows collection for this item and will be in contact with the full collection address once the order is ready. Ready for collection by Wednesday, 15 May.

Ready to ship in

The seller has indicated that they will usually have this item ready to ship within 3 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Buyer Protection How you're covered

Get it now, pay later

Product information

Condition:

New

Location:

South Africa

Product code:

MAT044

Bob Shop ID:

593521280

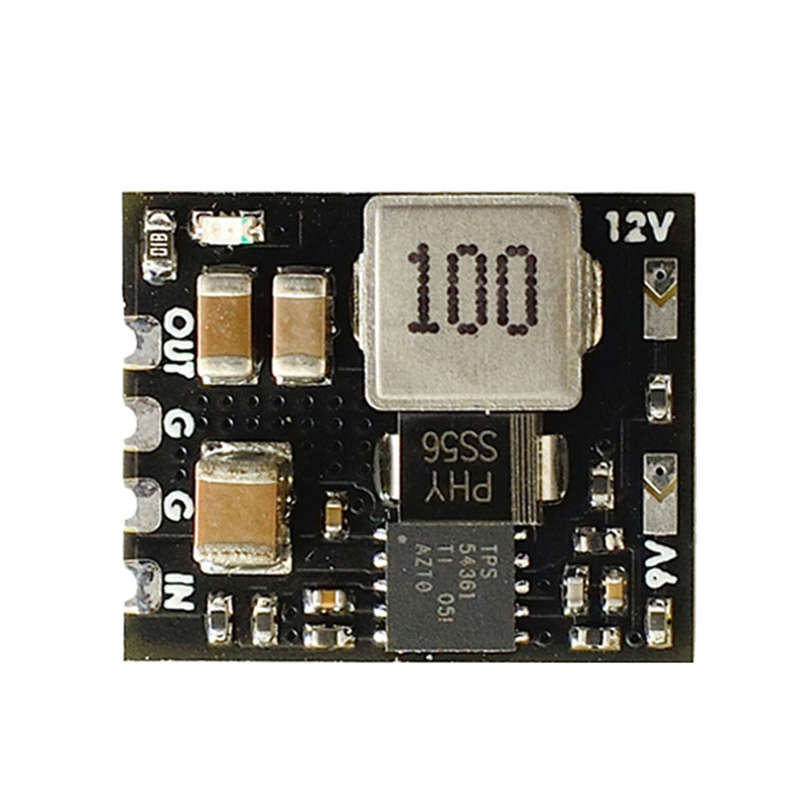

Get the voltage you need with this Matek BEC, convert 6-25V to either 5V, 9V, or 12V.

This BEC defaults to 5V, select either 9V or 12V by soldering the respective jumper.

Specifications

Wide 6V to 60V Operating Input Range
Start-up Voltage >=6.7V
VOut 5V, 9V or 12V Adj. Default is 5V.
Maximum Duty Cycle: 100%, when input voltage< setting value, Regulator output voltage = Input voltage
Continuous load current: Depends on input voltage and heat dissipation.
Standby current: <5mA
OCP Protection and Hiccup
Thermal Shutdown
Output Short-circuit tolerant (3 seconds/minute)
No protection for reversed input polarity
Pins distance: 2.54mm
Size & Weight: 18x15x4.5mm, 2g

Please note, if using higher than 6S, please read the following link: http://www.mateksys.com/?p=5712#tab-id-15
