Matek Systems PDB-XT60 W/ BEC 5V & 12V 2oz Copper For RC Multirotors The PDB-XT60 has been engineered to provide the highest possible performance and reliability in a 36*50mm & 4 layers PCB. It distributes power from a LiPo pack to 6 ESCs, as well as providing synchronised & regulated DC 5V outputs & linear regulated DC 12V for powering Cameras, Servos, RC receiver, Flight Controllers, Video Transmitters, LEDs, etc. It offers a XT60 socket to connect the LiPo pack conveniently. ?
Description: ?

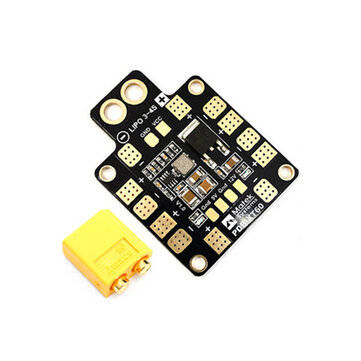

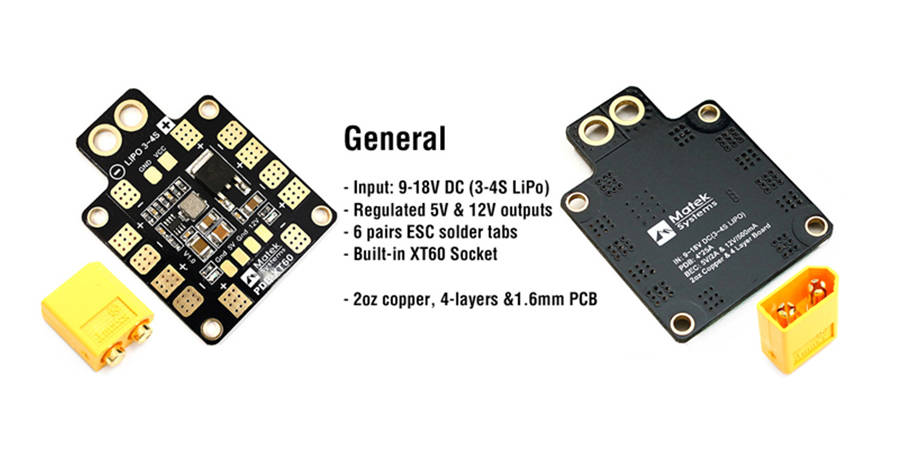

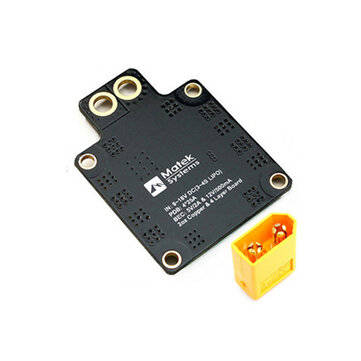

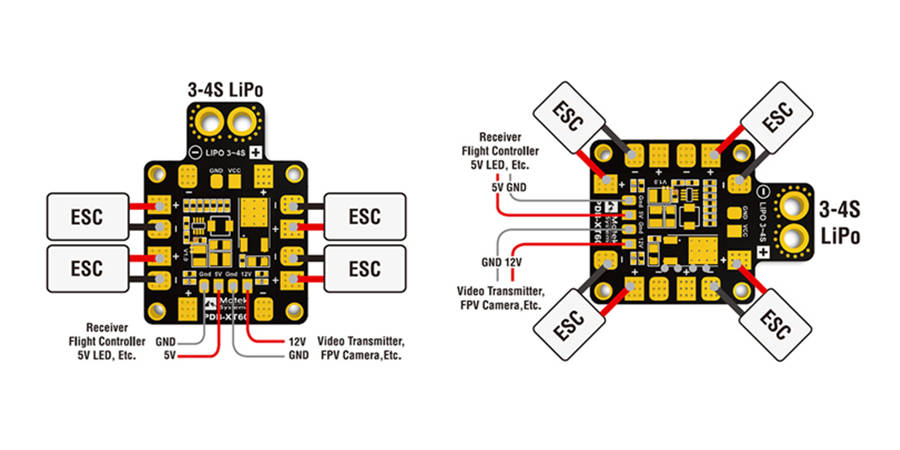

General: -Input voltage range (3S-4S LiPo operation): 9 - 18V DC -Regulated 5V and 12V outputs -LED power indicators ( 5V & 12V outputs ) -6 ESC outputs & 1 pair VCC/GND pads ?
ESC outputs: -Continuous current: 25A*4 or 15A*6 -Peak current (10 seconds/minute): 30A*4 or 20A*6 ?
BEC 5V output: -Designed for RC Receivers, Flight controllers, OSD, and Servos. -DC/DC synchronous buck regulator. -Voltage: 5.0 +/- 0.1VDC -Continuous current: 2 Amps (Max.2.5A 10s/minute) -Output Ripple: 40mV (VIn=16V, VOut=5V@2A load) -Short-circuit tolerant (5 seconds/minute) ?
BEC 12V output: -Designed for Video TX or FPV camera with linear regulator. -The battery should be 4S LiPo (13~18V DC) - Voltage: 12.0 +/- 0.3VDC -Continuous current: 500mA (Max.0.8A 5s/minute) -Short-circuit tolerant (2 seconds/minute) ?
BEC 12V @ 3S LiPo -Output voltage= 3S LiPo voltage -1V ?

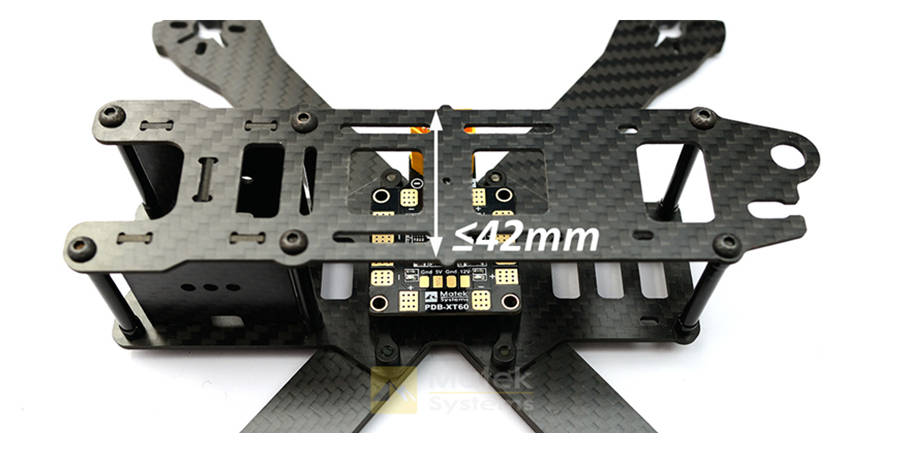

Physical: -Dimensions: 36 x 50 x 4 mm (without XT60) -Mounting: 30.5 x 30.5mm, ?|3mm - Weight: 7.5g(w/o XT60), 11g(w/ XT60) ?

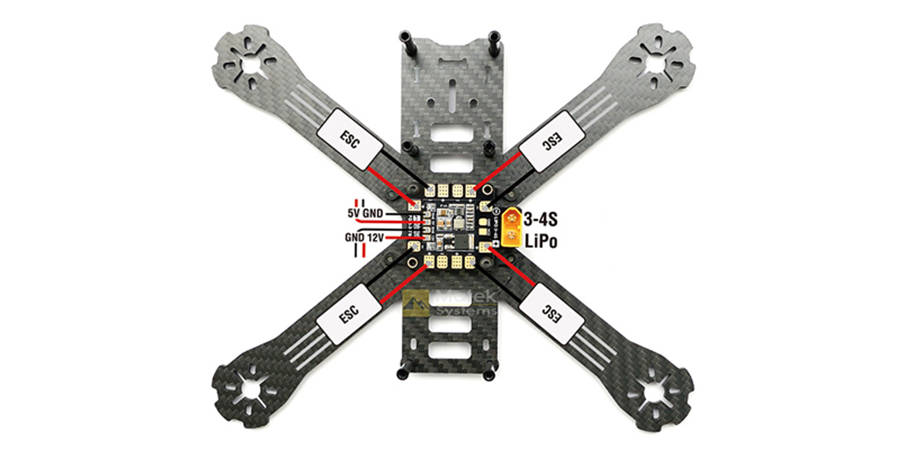

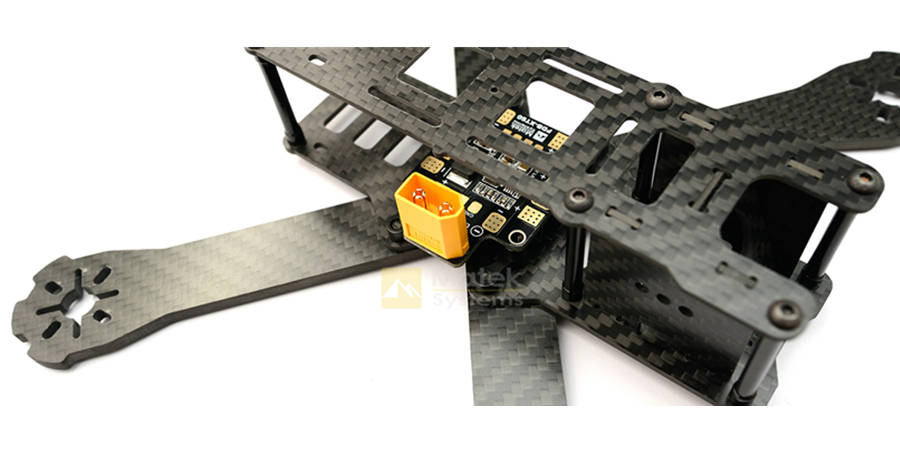

Features: 2oz copper, 4-layers &1.6mm PCB. Built-in XT60 Socket Total 6 pairs ESC solder tabs are fit for H or X type frame 5V & 12V Output LED indicators & Short circuit tolerant ?
Package included: 1 x Matek Systems PDB-XT60
,
,
,
,
,
