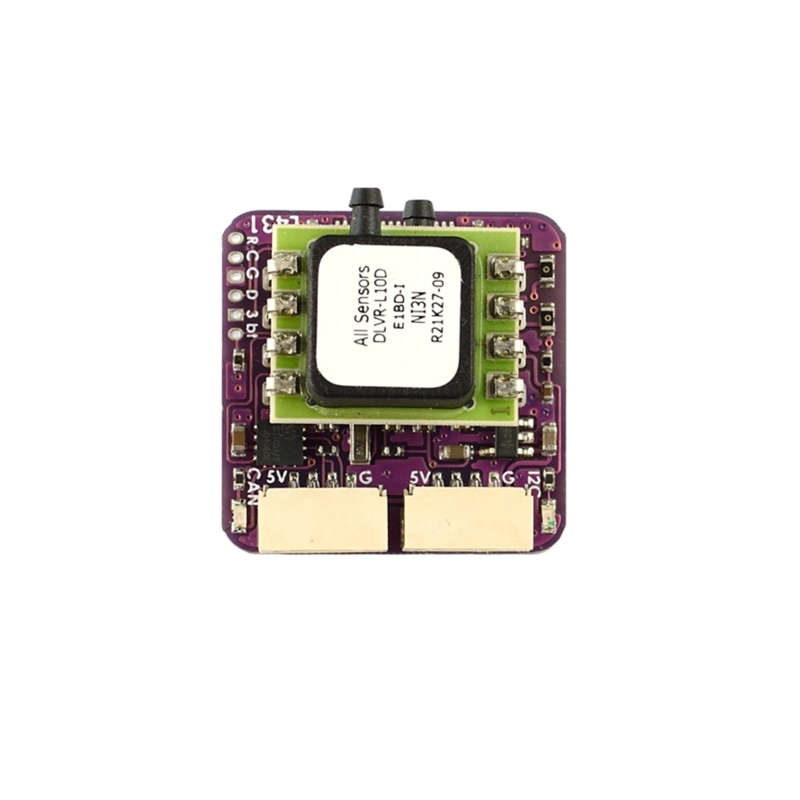

Mateksys Digital AirSpeed sensor ASPD-DLVR, I2C & UAVCAN L431

The Matek Digital Airspeed Sensor ASPD-DLVR features CAN JST-GH connector, UAVCAN Protocol UART1, UART2, UART3 among many other cool features!

• Specifications & Features
• ArduPilot AP_Periph L431 CAN node
• All sensors DLVR-L10D, Industrial temperature range
• CAN & I2C Interface
• Typical Platforms: Fixed-Wing, QuadPlane, VTOL
• CAN JST-GH connector, UAVCAN Protocol
• I2C JST-GH connector, DLVR-L10D I2C mode (I2C address 0x28)
• UART1, Firmware update
• UART2, Spare for external GPS
• UART3, MSP Protocol (To be supported)
• CAN bootloader LED, Blue

• • Fast blinking, No communication between CAN node and Flight Controllers
  • Slow blinking, Communicating between CAN node and Flight Controllers

Specifications

• 3.3V Power LED, Red
• Input voltage range: 4~6V
• Power consumption: 60mA
• Operating Temperatures: -20°C to 85°C
• Pressure Range: 2500Pa (± 10 inH2O)
• Burst Pressure: 75kPa
• Speed Range: ±250 km/h

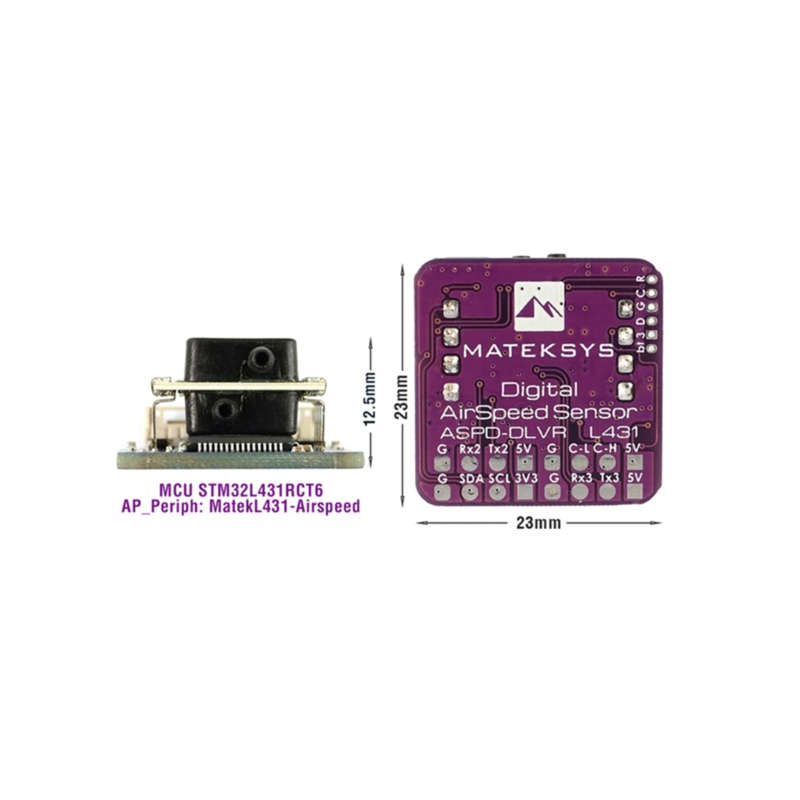

• 22mm*22mm*12.5mm
• 4g

Wiring Diagram

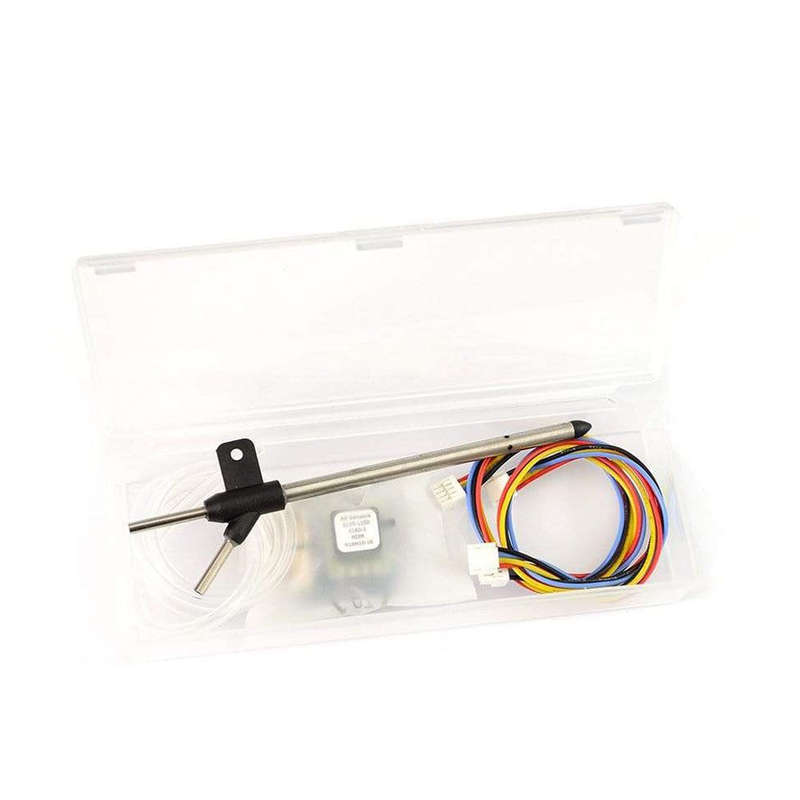

Includes

• 1 x ASPD-DLVR
• 2 x JST-GH-4P to JST-GH-4P 20cm silicon wire
