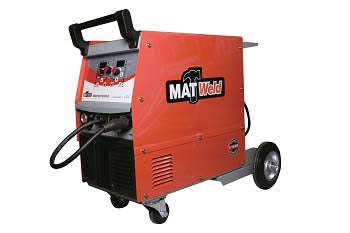

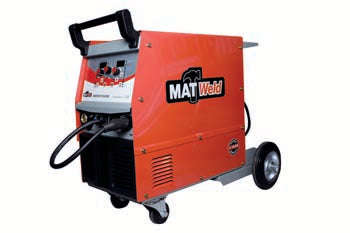

Matweld Welder Mig/Stick/Tig 250 Am 220 V

MATWELD WELDER MIG STICK TIG 250AM 220V

Key Features

Advanced IGBT inverter technology

Constant current, constant voltage CC/CV

Convenient 220V

High 60% duty cycle at 40°C

Three welding processes in one machine

MIG Welding

250A MIG - 30 to 250 Amps

2T - 4T trigger function

Built-in wire feeder with 2 roll driver

Wire inching facility

15kg spool capacity

0.8 1.0mm wires

Suitable for mild steel, aluminium and stainless steel MIGwelding

TIG Welding

220A TIG - 10 to 220 Amps

Lift Arc TIG function

One piece TIG torch - sold separately - see below

Trigger controlled gas solenoid

Not suitable for aluminium TIG welding

MMA Stick Welding

220A MMA - 10 to 200 Amps

DC stick welding

Up to 4mm electrode

Technical Data

Input Power Voltage 220V ±15%

Frequency 50/60HZ

Rated Input Power KVA 45 KVA

No Load Voltage 60V

Output Current Range MMA 20 - 200A

TIG 15 - 250A

MIG 30-250A

Rated Work Voltage 28

Duty Cycle% 35%

Suitable Welding Wire 0.8/1.0mm

Type of Wire Feeder Internal

Protection Class IP21S

CODE: MAT9105

BARCODE: 6008075939205

HEIGHT: 71.0cm

LENGTH: 96.5cm

WIDTH: 46.0cm

WEIGHT: 70kg
