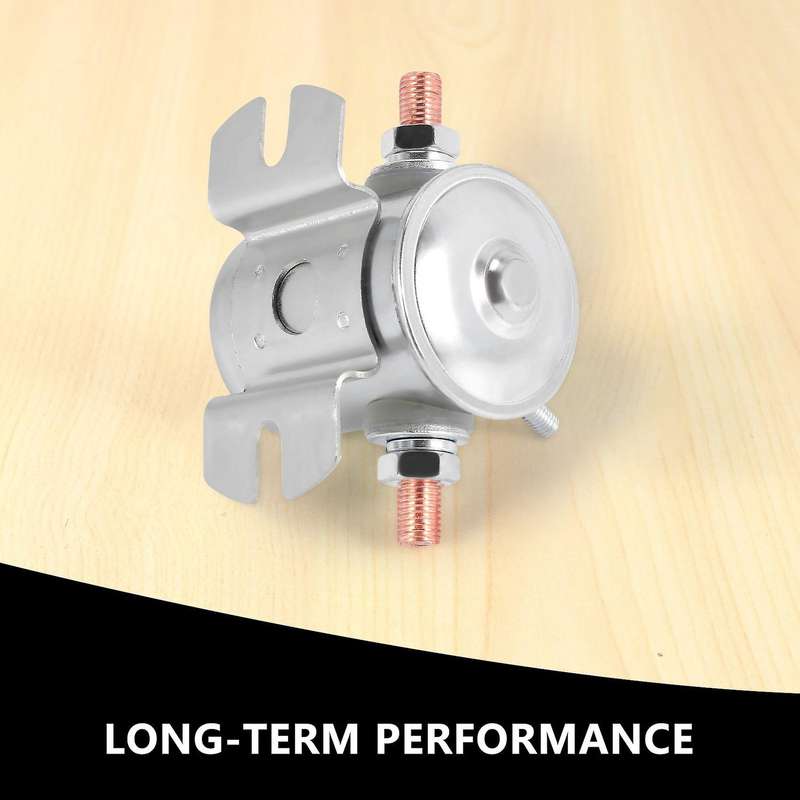

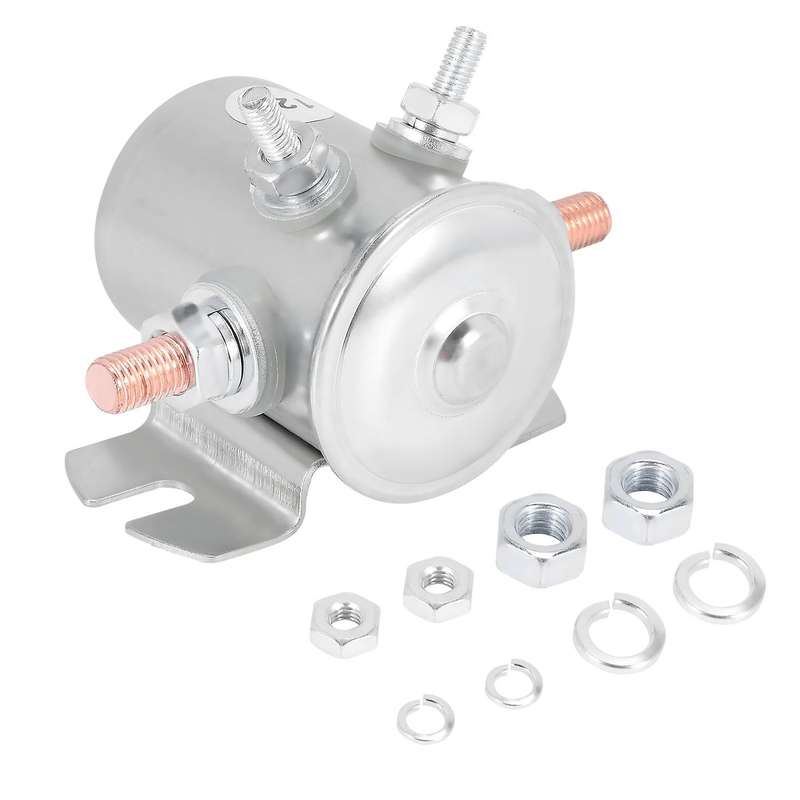

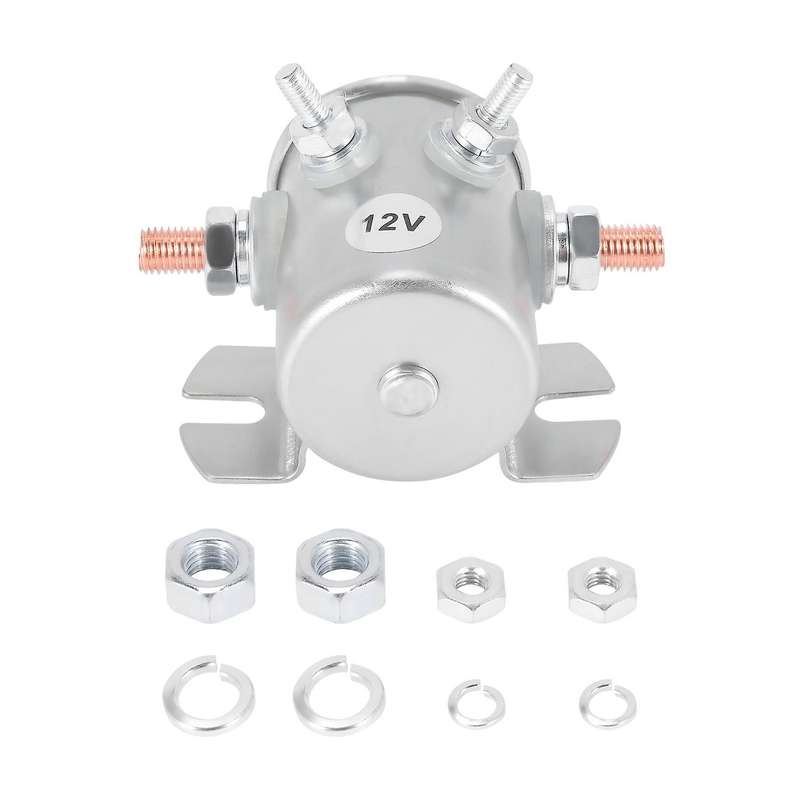

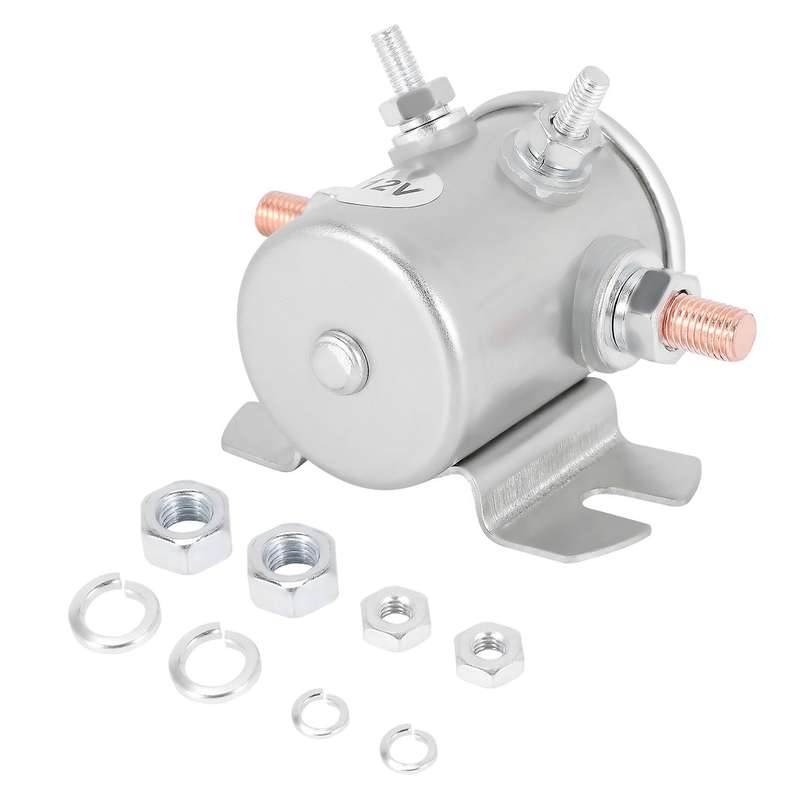

Max 300A Continuous Duty Solenoid Relay 12V DC Starter Solenoid for Golf Carts,Winch ,Marine in Rus

CIRCUIT CHARACTERISTICS-Single pole single throw with 2 Silver POINT. is 14, Capacity is 102W,12 V DC.HIGH QUALITY-Copper wire temperature : 180 . Cover is Nickel-Plating, Meet Environmental Plating Requirment, and Avoid Rusting, ShiningFITMENT-300A Continuous Duty Solenoid Relay Nickel-Plating for Golf Carts,Winch, MarineREPLACES-70-111224,3635820, 1114208, 1114218, 1114223, 1114534, 1114547.1. The product conforms to OC \/ t695-2002 relay standard2. There are no missing parts and fasteners are not loose;3. Voltage: 12 048v4. Circuit characteristics: single pole single throw5. Coil parameters: wire diameter: 0 . 4, number of turns: 1200, temperature : 180 6. 12V: the starting voltage Less than 8V, the releasing voltage Less than 25V7. Coil winding value test: 12V value = 10 . 5Q 5 % ( 20 )8. White zinc plating on shell, 8 thick, 48 hours salt spray9. Insulation : the sine wave voltage is 550V and the test lasts for 1min. The insulation will not be broken down10. Use temperature range (- 30 - + 85) degrees11. Relative humidity less than 90%12. Contact load current 300A, duration ; contact voltage drop less than equal 02V (20A)13. Maximum instantaneous current 600A (within 3 seconds)14. Winding skeleton 30% reinforced flame retardant nylon15. The durability of relay is tested more than 80000 times when it is powered on aloneMaterial:metalcolour:SilverPackage Contents:1 x Solenoid Relay with accessoriesOnly the above package content, other products are not included.Note: Light and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +\/- 1-3cm.
