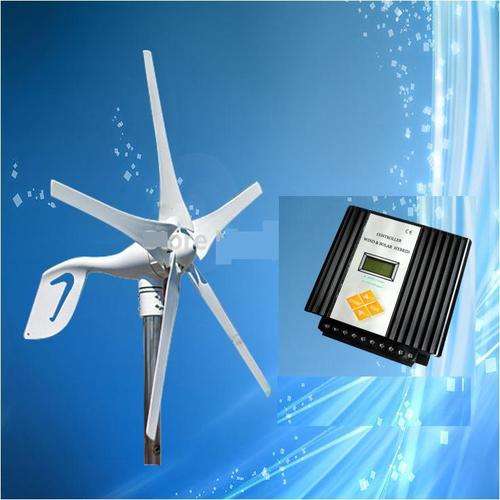

Max 600W/12V Wind Generator + Wind/Solar Hybrid Controller (Max 600W Wind,150W Solar), CE Approved
Technical Parameter Wind Turbine
Introduction | Wind is in nature inexhaustible energy, but also not pollute the environment is one of the energy. Changing the wind energy to power energy is used in industy production and normal life,which is human ideal energy acquisition modes. This Wind Turbine Generator includes a high efficiency motor to get the most from the turbine.This turbine comes with one of the best warranties in the industry. This wind generator turbine is small yet versatile turbine and can produce up to 600 Watts Max. It features a special coating that protects the generator, making it suitable for locations. The turbine begins to supply power in wind speeds as low as 2.5m/s
| |
Technical Data | Model | SF-600-3 |
Name | White Pigeon (II) | |
Rated Power | 400W | |
Rated DC Voltage | DC12V/24V | |
Rated Current | 33A/17A | |
Rated Speedy | 900r/m | |
Max Power | 600W | |
Start-up wind speed | 3.0m/s | |
Cut-in wind speed | 3.5m/s | |
Cut-out wind speed | 15m/s | |
Rated wind speed | 12m/s | |
Engine | Three-phase permanent magnet generator | |
Rotor diameter | 1230 mm | |
Output line anti-winding device | Overall three-phase commutator | |
Wind protection | Tip stall protection+turned protection+electromagnetic brake | |
Life span | 15 years | |
Equipment surface protection | Aluminum oxide+plastic coating | |
working temperature | -40°c to 70°c | |
Weight | 8.5kg |
Packing list:
• Wind/solar hybrid controller
• 3 pcs of blades
• wind turbine hub
• screw bolts and nose cone
• Wind generator
• Use manual
