MAX31855 K Type Thermocouple Board Temperature Measurement Sensor Module

20 available / new

R549.00

Add to watchlist Watch

Shipping

R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate

The seller has indicated that they will usually have this item ready to ship within 12 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery

Main centres:	1-3 business days
Regional areas:	3-4 business days
Remote areas:	3-5 business days

Seller

szulou3462

93.47 % Positive ratings

Buyer protection

How you're covered

Returns

Replacement Guarantee: 7 Days: We stand by this guarantee

Get it now, pay later

Product details

Condition

New

Location

International

Bob Shop ID

641128785

Feature:

Thermocouples are very sensitive, requiring a good amplifier with a cold-junction compensation reference.
This product does everything for you, and can be easily interfaced with any microcontroller, even without an analog input.

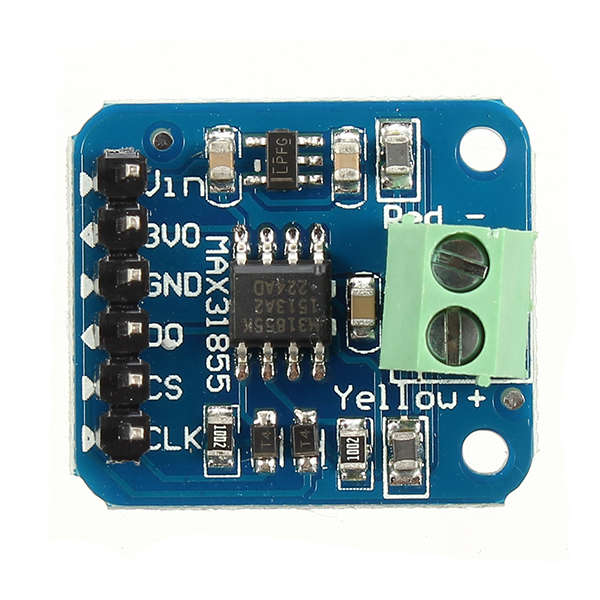

This board has the chip itself, a 3.3V regulator with 10uF bypass capacitors and level shifting circuitry, all assembled and tested.
Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any breadboard).

Description:

Measurement temperature range: -200 ﾣC to 1350 ﾣC
SPI interfaces, high-speed transmission
The input voltage: 3-5v DC
Direct digital output temperature value, no amplifiers, no ADC
14-bit resolution, 0.25 degree temperature accuracy

Note:

Works with any K type thermocouple
K thermocouples have about &pm;2ﾣC to &pm;6ﾣC accuracy
Internal temperature reading
3 to 5v power supply and logic level compliant!
SPI data output requires any 3 digital I/O pins.

Packing includes:

1 x Thermocouple Board
