MAX31855 MAX6675 SPI K Thermocouple Temperature Sensor Module Board Geekcreit for Arduino - products

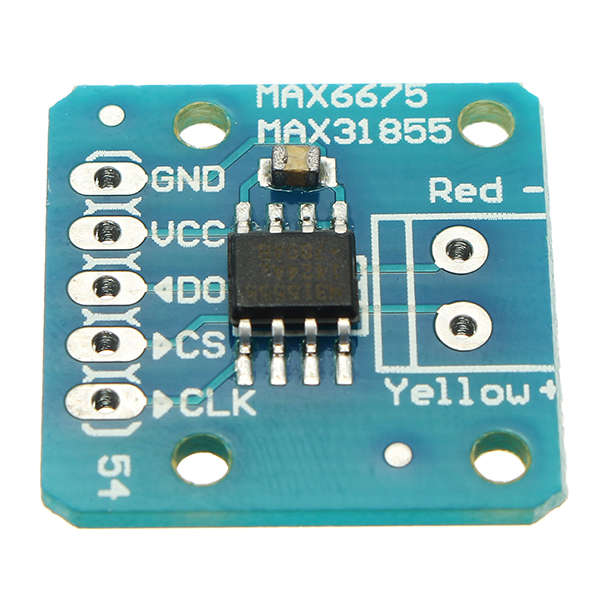

Feature: 1. Thermocouples are very sensitive, requiring a good amplifier with a cold compensation reference. 2. This protuct does everything for you, and can be easily interfaced with any microcontroller even one without an analog input. 3. This breakout board has the chip itself, a 3.3V regulator with 10uF bypass capacitors and level shifting circuitry. 4. Comes with a 2 pin terminal block (for connecting to the thermocouple) and pin header (to plug into any breadboard or perfboard). Description: 1. Measurement temperature range: -200ﾣC to +1350ﾣC 2. SPI interfaces, high-speed transmission 3. The input voltage is 3-5V DC 4. Direct digital output temperature value, no amplifiers, no ADC 5. 14-bit resolution, 0.25 degree temperature accuracy Note: 1. Works with any K type thermocouple 2. K thermocouples have about ±2ﾣC to ±6ﾣC accuracy 3. Internal temperature reading 4. 3 to 5v power supply and logic level compliant 5. SPI data output requires any 3 digital I/O pins Packing included: 1 x Thermocouple Breakout Board









, , ,
