MAX7219 Dot Matrix MCU LED Display Control Module Kit
New
Indicative market price: R63.67
Shipping
Standard courier shipping from R60
R60 Standard shipping applies to orders under R100, in most areas in South Africa. R30 Standard shipping applies to orders over R100. Some areas may attract a R30 surcharge. This will be calculated at checkout if applicable.
Check my rate
Check my rate
Free collection from
Henley on Klip, Meyerton
The seller allows collection for this item and will be in contact with the full collection address once the order is ready.
Ready for collection by Tuesday, 14 May.
Ready to ship in
The seller has indicated that they will usually have this item
ready to ship within 2 business days. Shipping time depends on your delivery address. The most
accurate delivery time will be calculated at checkout, but in
general, the following shipping times apply:
Standard Delivery
| Main centres: | 1-3 business days |
| Regional areas: | 3-4 business days |
| Remote areas: | 3-5 business days |
Buyer Protection
How you're covered
Get it now, pay later
Product information
Condition:
New
Location:
South Africa
Product code:
1147
Bob Shop ID:
613701512

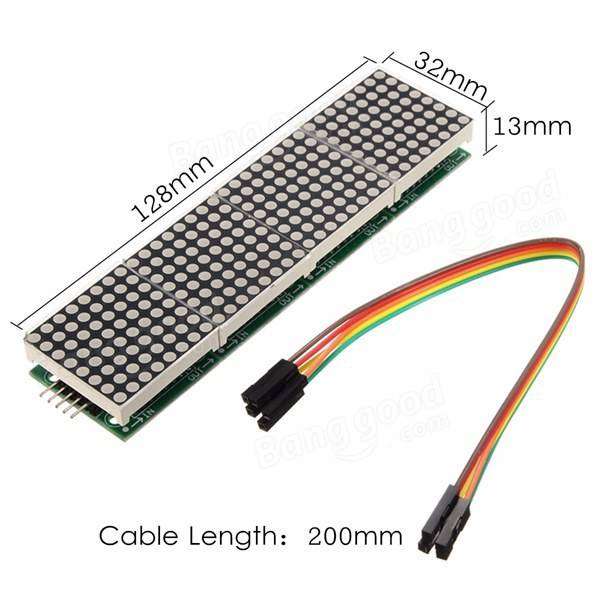

Looking for easy to control LED matrix? This 4 in 1 Dot Matrix Display module should be suitable for you. The whole module comes in four 8x8 RED common cathode dot matrix that equiped with MAX7219 IC each. Great to display running text and picture. It can be cascaded to bigger dot Matrix display, but do make sure the current of 5V is sufficient to support it.
Specifications
What's in the box?
1 x MAX7219 Dot Matrix Module
1 x 5pin jumper Cable
Resources

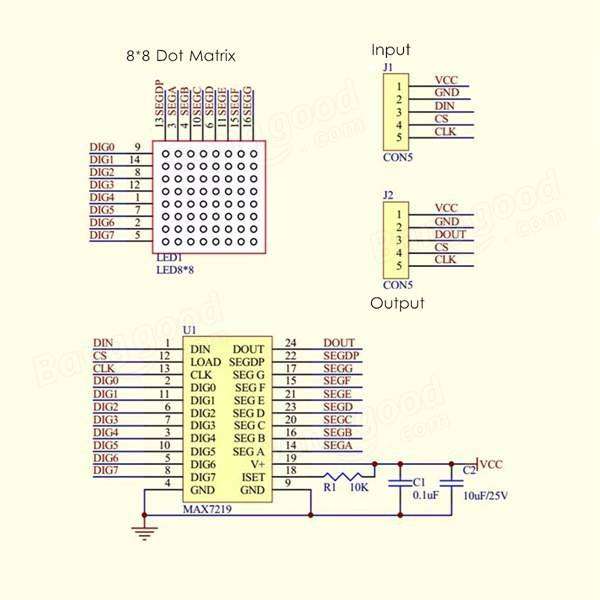

Wiring
1. The left side of the module is the input port, and the right is the output port.
2. Control of a single module, the input port only need to receive CPU.
3. The more a module cascade and input end of the first module is connected with the CPU and input end of the input end of the output end is connected to the second module, output terminal of the second module connected with the three modules, and so on.
For example: 51 SCM
VCC→5V
GND→GND
DIN→P2.2
CS →P2.1
CLK→P2.0
https://max7219.readthedocs.io/en/0.2.3/
Clock example
Python Library
Note: Stock is currently available in South Africa for national shipping!
Specifications
- A single module can drive a 8x8 dot matrix common cathode
- Working voltage: 5V
- Module size: 12.8 x 3.2 x 1.3 cm (L*W*H)
- With 64 fixing screw holes, hole diameter: 3mm
- Module with input and output interfaces, support for cascading multiple modules
What's in the box?
1 x MAX7219 Dot Matrix Module
1 x 5pin jumper Cable
Resources
Wiring
1. The left side of the module is the input port, and the right is the output port.
2. Control of a single module, the input port only need to receive CPU.
3. The more a module cascade and input end of the first module is connected with the CPU and input end of the input end of the output end is connected to the second module, output terminal of the second module connected with the three modules, and so on.
For example: 51 SCM
VCC→5V
GND→GND
DIN→P2.2
CS →P2.1
CLK→P2.0
https://max7219.readthedocs.io/en/0.2.3/
Clock example
Python Library
Note: Stock is currently available in South Africa for national shipping!
