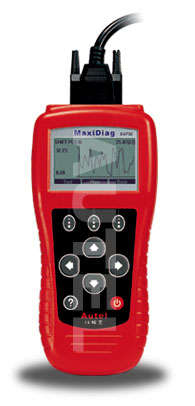

MaxiDiag™ EU702 Scan Tool
Powered by Autel Uni-SCAN™ technology, the MaxiDiag™ EU702 is an innovative multi-functional scan tool designed for technicians to troubleshoot engine, transmission, ABS and airbag systems for major European vehicles. Reliable, easy-to-use and affordable, the MaxiDiag™ EU702 is a time saver and a money maker!
Product Features & Functions
Troubleshoots engine, ABS, transmission and airbags codes
Global OBDII/EOBD coverage (US, Asian & European)
Powered by Uni-SCAN™ technology with no adapters to buy
Resets oil service indicator light
Supports all nine test modes of the latest J1979 OBD II test specs
Retrieves generic (P0, P2, P3, and U0) and manufacturer specific (P1, P3, and U1) codes
Displays DTC definitions on unit screen
Views freeze frame data
Displays O2 sensor data as well as live datastream parameters
Data graphing – (1996 and newer)
Reads, stores & playbacks live sensor data
Memory/battery backup for off-vehicle data review and analysis
Performs modules present test
Retrieves vehicle information (VIN, CIN and CVN)
Supports all current OBD-II protocols, including CAN
(Controller Area Network)
Extremely easy to use and highly reliable
Trilingual support—English, Spanish, French or other combinations
Software upgradable via the internet
Built-in OBD-II DTC lookup library
Prints data via PC
MaxDiag™ Series are innovative multi-functional scan tools designed for technicians to troubleshoot engine, transmission,ABS and airbag systems on major vehicle makes. Reliable, easy-to-use and affordable, the MaxDiag™ Series are time savers and money makers!
Features & Benefits
Troubleshoots engine, ABS, transmission and airbags
Global OBDII/EOBD coverage
Powered by Uni-SCAN™ technology with no adapters to buy
Supports all nine test modes of the latest J1979 OBDII test specs
Retrieves generic(PO,P2,P3,and UO)and manufacturer specific(P1,P3,and U1)codes
Displays DTC definitions on unit screen
Views freeze frame data
Displays O2 sensor data as well as live datastream parameters
Graphs data(1996 and newer)
Reads, stores&playbacks live sensor data
Memory/battery backup for off-vehicle data and analysis
Performs modules present test
Retrieves vehicle information(VIN,CID and CVN)
Supports all current OBD-II protocols, including CAN(Controller Area Network)
Extremely easy to use and highly reliable
Multilingual support
Software upgradeable via the internet
Built-in OBD-II DTC lookup library
Prints data via a PC
Specification
Display: Backlit,128x64 pixel display with contrast adjustment
Operating Temperature: 0 to 60°C (-32F to 140 F°)
Storage Temperature: -20°C to 70°C (-4 to 158 F°)
External Power: 6.0 to 21.0V power provided via vehicle
Internal Power: 6V power provided by four 1.5V batteries
Dimensions: Length: 210mm(8.27")
Width:99mm(3.90")
Heiht:38mm(1.50")
NW: 1.0kg(2.2lb)
GW: 1.2kg(2.65lb)
Some products will be shipped from Asia if they are not in stock in our warehouse in SA. In this case delivery to you will take between 6 and 12 days. You will be informed of the stock/delivery situation when you have placed an order. Please note that the price you see here is the price you pay. WE pay the Import duties, VAT, Delivery cost to SA etc
(PLEASE CONFIRM STOCK AVAILABILITY PRIOR TO PLACING THE ORDER)
