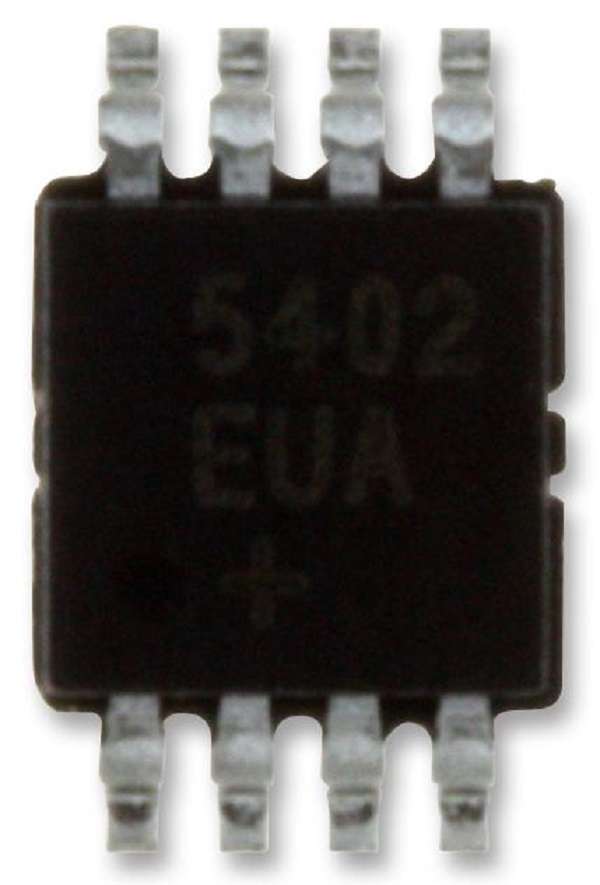

Maxim Integrated (DS1090U-1+) Timer, Oscillator & Pulse Generator IC

Timer, Oscillator & Pulse Generator IC, Spread Spectrum Square Wave, 8 MHz, 3 Vto 5.5 V, µMAX-8Product OverviewThe DS1090U-1+ is a low-frequency, spread-spectrum EconOscillator in 8 pin µMAXpackage. It is a low cost, dithered oscillator intended to be used as anexternal clock for switched-mode power supplies and other low-frequencyapplications. The dithering or sweeping function reduces peak-radiated emissionsfrom the power supply at its fundamental frequency as well as harmonicfrequencies. The device consists of four basic circuit blocks such asresistor-programmed master oscillator, factory-programmed clock prescaler, apin-programmed dither circuit and the voltage-bias circuit that provides thefeedback path to the master oscillator for frequency control and ditheringfunctions. The DS1090 to be used in applications where a spread-spectrum clockis desired to reduce radiated emissions. A combination of factory-set prescalersand external resistor allows for output frequencies ranging from 4MHz to 8MHz.Both dither frequency and dither percentage are set using control pins.Supply voltage range is 3V to 5.5VOperating temperature range from -40°C to 85°CSimple user programmingDither percentage programmable from 0% to 8%Dither rate programmable (fMOSC/512, 1024, 2048 or 4096)CMOS/TTL compatible outputPrescaler divides the frequency of master oscillator by 1ApplicationsSignal Processing, Power Management, Industrial, Portable DevicesProduct InformationFrequency: 8MHzSupply Voltage Min: 3VSupply Voltage Max: 5.5VDigital IC Case: µMAXNo. of Pins: 8PinsOperating Temperature Min: -40°COperating Temperature Max: 85°CMSL: MSL 1 - Unlimited
