Maxim Integrated (ICM7211AMIQH+D) Display Driver, LCD 4 Digits, 7 Segments

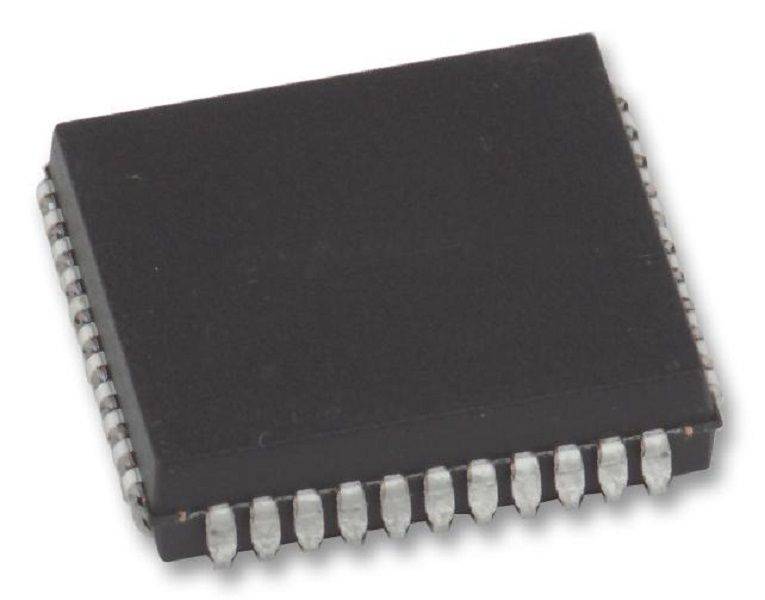

Product OverviewThe ICM7211AMIQH+D is a four digit display decoder/driver in 44 pin PLCCpackage. The four digit 7-segment display LCD driver includes input datalatches, BCD to segment decoder, all level translation and timing circuitsneeded to drive non multiplexed displays. It is a microprocessor interface typedata input configuration that has four BCD data inputs, two digit address linesand two chip selects or write inputs. The low power consumption of the LCDdriver makes it ideal for battery powered applications. Typical applicationsinclude intelligent instruments, digital panel displays, remote display unitsand microprocessor to visual communication.Supply voltage range is 3V to 6VOperating temperature range from -20°C to 85°CNon multiplexed liquid crustal displayEliminates the need of external componentsCode B outputIncreased segment on currentLow power of typical 25µWOperating current is 10µAApplicationsIndustrial, Portable DevicesProduct InformationNo. of Digits: 4No. of Segments: 7Driver Case Style: PLCCNo. of Pins: 44PinsSupply Voltage Min: 3VSupply Voltage Max: 6VInterface Type: -Operating Temperature Min: -20°COperating Temperature Max: 85°CProduct Range: -MSL: MSL 3 - 168 hours
