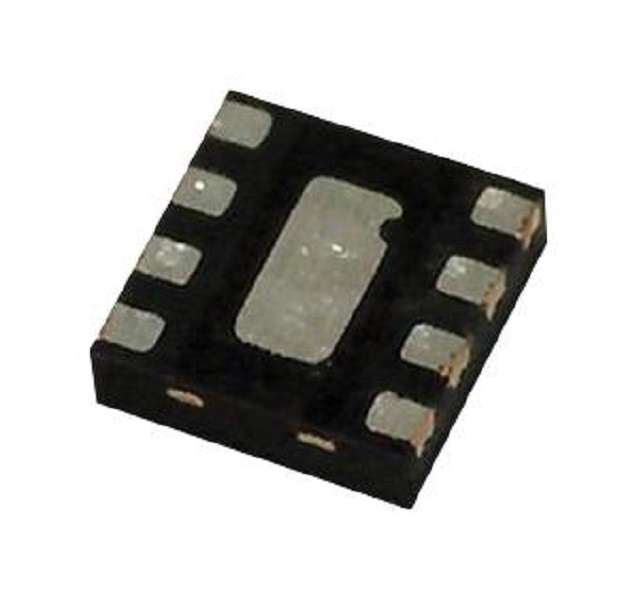

Maxim Integrated (MAX15062AATA+T) DC/DC Controller, Synchronous Buck

DC/DC Controller, Synchronous Buck (Step Down), 4.5 V to 60 V, 1 Output, 500kHz, TDFN-8Product OverviewThe MAX15062AATA+T is an ultra small, high efficiency, synchronous step-downDC-DC converter in 8 pin TDFN package. It has a peak current mode controlarchitecture with a MODE pin that can be used to operate device in pulse-widthmodulation (PWM) or pulse-frequency modulation (PFM) control schemes. PWMoperation provides constant frequency operation at all loads & is useful inapplications sensitive to variable switching frequency. PFM operation disablesnegative inductor current & additionally skips pulses at light loads for highefficiency. The low-resistance on-chip MOSFETs ensure high efficiency at fullload & simplify PCB layout. To reduce input inrush current device offers aninternal soft-start. The device also incorporates an EN/UVLO pin that allowsuser to turn on part at desired input-voltage level. An open-drainRESET(complementary) pin can be used for output-voltage monitoring. It is usedin HVAC & building control, 4mA to 20mA current loops & general purpose point ofload.Supply voltage range is 4.5V to 60VAutomotive operating temperature range from -40°C to 125°CEliminates external components & reduces total cost, internal compensation &internal soft-startReduces number of DC-DC regulators to stock, fixed 3.3V output voltage optionDelivers up to 300mA load current, shutdown current is 2.2µA (typ)Reduces power dissipation, peak efficiency is 92%, PFM feature for highlight-load efficiencySwitching frequency is 500KHz and maximum duty cycle is 91.5%(typ)All ceramic capacitors, ultra compact layout & overtemperature protectionMonotonic start-up into pre-biased outputApplicationsPower Management, IndustrialProduct InformationSupply Voltage Min: 4.5VSupply Voltage Max: 60VNo. of Outputs: 1 OutputDuty Cycle (%): 91.5%Controller IC Case Style: TDFNNo. of Pins: 8PinsSwitching Frequency: 500kHzTopology: Synchronous Buck (Step Down)Operating Temperature Min: -40°COperating Temperature Max: 125°CProduct Range: Himalaya SeriesMSL: MSL 1 - Unlimited
