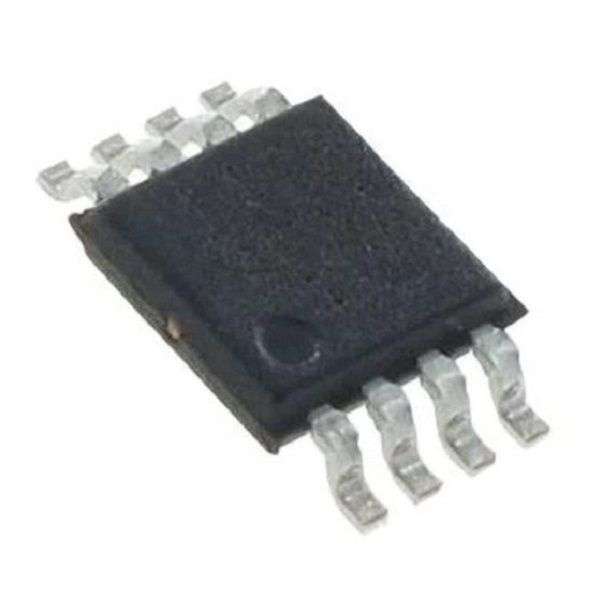

Maxim Integrated (MAX1776EUA+T) Buck (Step Down) Switching Regulator

Buck (Step Down) Switching Regulator, Fixed, 4.5V-24Vin, 5V/600mA out, 200 kHz,µMAX-8Product OverviewThe MAX1776EUA+T is a 24V, 600mA internal switch, 100% duty cycle, step downconverter in 8 pin µMAX package. This high-efficiency step-down converterprovides an adjustable output voltage from 1.25V to VIN from supply voltages ashigh as 24V. An internal current limited 0.4ohm MOSFET delivers load currents upto 600mA. Operation to 100% duty cycle minimizes dropout voltage (240mV at600mA). The MAX1776 has a low 15µA quiescent current to improve light-loadefficiency and conserve battery life. The device draws only 3µA while inshutdown. High switching frequencies (up to 200KHz) allow the use of tinysurface-mount inductors and output capacitors. Typical applications includenotebook computers, distributed power systems, keep-alive supplies and hand-helddevices.Supply voltage range is 4.5V to 24VOperating temperature range from -40°C to 85°CInternal 0.4ohm P-channel MOSFETEfficiency is 95%Current limited architectureThermal shutdownApplicationsPower Management, Portable DevicesProduct InformationTopology: Buck (Step Down)Input Voltage Min: 4.5VInput Voltage Max: 24VDC / DC Converter IC Case: µMAXNo. of Pins: 8PinsOutput Current: 600mAOutput Voltage Nom: 5VSwitching Frequency: 200kHzOperating Temperature Max: 85°CMSL: MSL 1 - Unlimited
