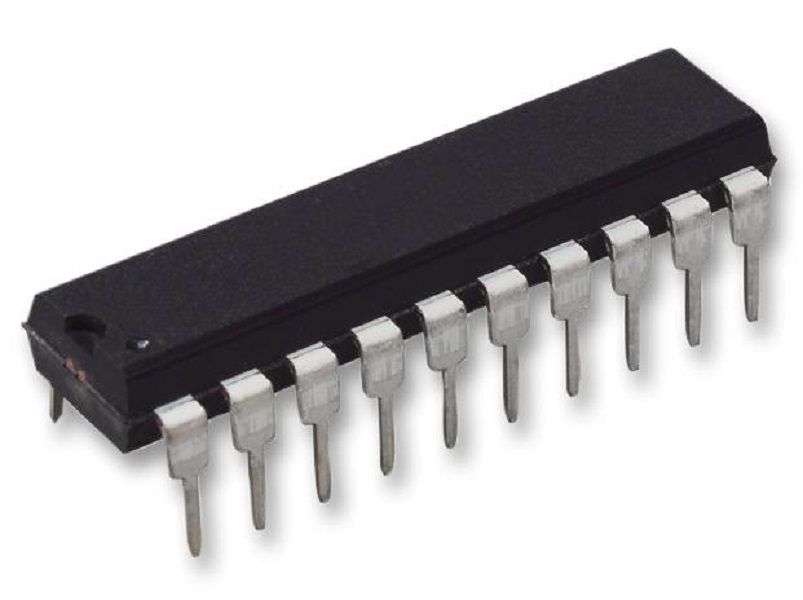

Maxim Integrated (MAX203EPP+G36) Transceiver RS232, 4.75V-5.25V supply

Product OverviewThe MAX203EPP+G36 is a ±15KV ESD protected, +5V RS232 transceiver in 20 pin DIPpackage. It is a RS232 and V.28 transceiver with high ±15KV ESD HBM (Human BodyModel) protection and integrated charge pump circuitry for single 5V supplyoperation. This transceiver meets all EIA/TIA232E and CCITT V.28 specificationsat data rate up to 120Kbps when loaded. It does not require external charge pumpcapacitors. This device is typically used in battery powered equipment.Two drivers and two receiversSupply voltage range from 4.75V to 5.25VOperating temperature range from -40°C to 85°CSupply current is 8mAIntegrated 0.1µF capacitorsSaves board spaceSaves power for reduced power requirementApplicationsCommunications & Networking, Portable Devices, MedicalProduct InformationDevice Type: TransceiverIC Interface Type: RS232No. of Drivers: 2DriversNo. of Receivers: 2ReceiversSupply Voltage Min: 4.75VSupply Voltage Max: 5.25VDriver Case Style: DIPNo. of Pins: 20PinsOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -Automotive Qualification Standard: -MSL: MSL 1 - UnlimitedIC Generic Number: MAX203E
