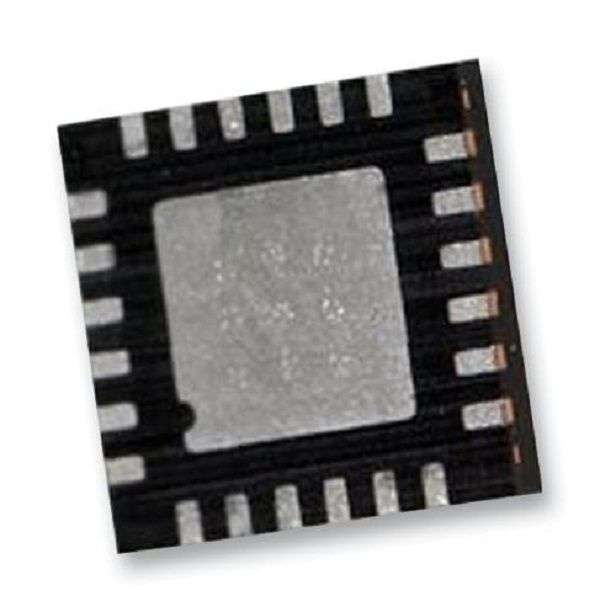

Maxim Integrated (MAX20444CATG/VY+) Display Driver, I2C, 4.5 V to 36 V

Product InformationNo. of Digits: -No. of Segments: -Driver Case Style: SWTQFN-EPNo. of Pins: 24PinsSupply Voltage Min: 4.5VSupply Voltage Max: 36VInterface Type: I2COperating Temperature Min: -40°COperating Temperature Max: 125°CProduct Range: -MSL: MSL 1 - UnlimitedGeneral DescriptionThe MAX20444C is a 4-channel backlight driver IC with boost controller forautomotive displays. The integrated current outputs can sink up to 130mA LEDcurrent each. The device accepts a wide 4.5V to 36V input voltage range andwithstands direct automotive load-dump events.The internal current-mode switching DC-DC controller supports boost or SEPICtopologies and operates in the 400kHz to 2.2MHz frequency range. Integratedspread spectrum helps reduce EMI. An adaptive output voltagecontrol schememinimizes power dissipation in the LED current-sink paths.The device features I2C-controlled pulse-width-modulation (PWM) dimming andhybrid dimming. In either case, the minimum pulse width is 500ns. Phase-shifteddimming of the strings is incorporated for lower EMI. Comprehensive diagnosticinformation is also available through the I2C interface, while stand-aloneoperation is also supported.The MAX20444C is available in a 24-pin TQFN or 24-pin side-wettable TQFN(SWTQFN) package and operates over the -40°C to +125°C temperature range.
