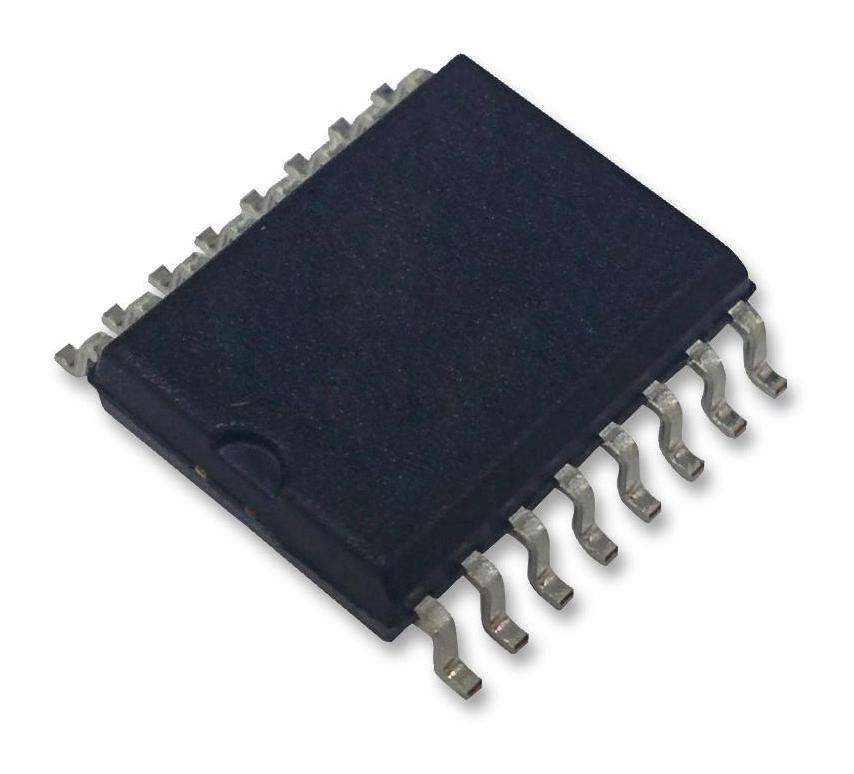

Maxim Integrated (MAX232CWE+T) Transceiver RS232, 4.5V-5.5V supply

Maxim Integrated (MAX232CWE+T) Transceiver RS232, 4.5V-5.5V supply

New 1606 available
R469.00
Shipping
R35.00 Standard shipping using one of our trusted couriers applies to most areas in South Africa. Some areas may attract a R30.00 surcharge. This will be calculated at checkout if applicable.
Check my rate
The seller has indicated that they will usually have this item ready to ship within 7 business days. Shipping time depends on your delivery address. The most accurate delivery time will be calculated at checkout, but in general, the following shipping times apply:

Standard Delivery
Main centres:  1-3 business days
Regional areas: 3-4 business days
Remote areas: 3-5 business days
Seller
Buyer protection
Get it now, pay later

Product details

Condition
New
Location
South Africa
Product code
2511969
Bob Shop ID
674511601
Product OverviewThe MAX232CWE+T is a +5V powered multichannel RS232 driver/receiver in 16 pinWSOIC package. This device is intended for all EIA/TIA-232E and V.28/V.24communications interfaces. It is particularly suitable for applications where±12V is not available. The MAX232 has four sections such as dual charge pump DCto DC voltage converter, RS232 driver, RS232 receiver and receiver/transmitterenable control inputs. The integrated charge pump circuitry eliminates the needfor bipolar ±12V supply and enables single supply operation from +5V supply. Itis used in interface translation and multidrop RS232 network applications.Supply voltage range from 4.5V to 5.5VOperating temperature range from 0°C to 70°CTwo RS232 drivers and two RS232 receiversSaves board spaceData rate of 120KbpsTransition slew rate is 4V/µs (CL = 50pF to 2500pF, RL = 3Kohm to 7Kohm)VCC supply current of 5mA with no loadApplicationsCommunications & Networking, Portable Devices, MedicalProduct InformationDevice Type: TransceiverIC Interface Type: RS232No. of Drivers: 2DriversNo. of Receivers: 2ReceiversSupply Voltage Min: 4.5VSupply Voltage Max: 5.5VDriver Case Style: WSOICNo. of Pins: 16PinsOperating Temperature Min: 0°COperating Temperature Max: 70°CProduct Range: -Automotive Qualification Standard: -MSL: MSL 1 - Unlimited
Add to cart
