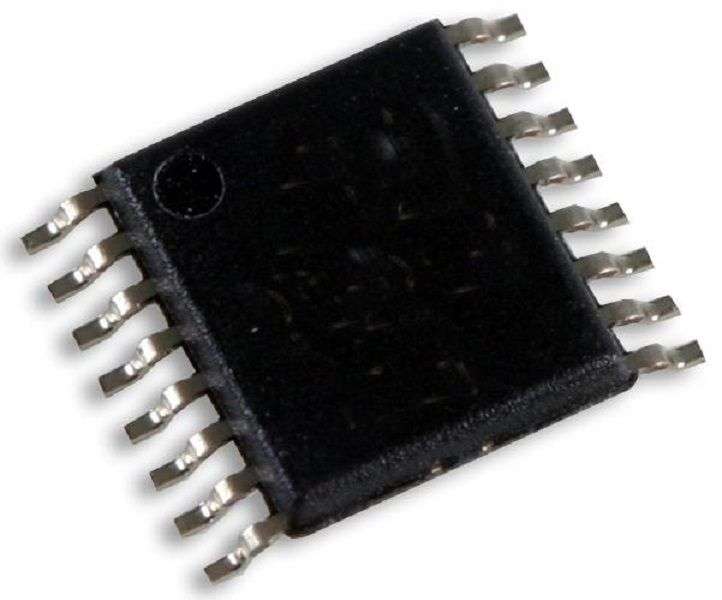

Maxim Integrated (MAX3100CEE+T) UART Interface, 1 Channel, 230 Kbaud

Product OverviewThe MAX3100CEE+T is a SPI/MICROWIRE compatible UART in 16 pin QSOP package. Thisis the first UART specifically optimized for small microcontroller basedsystems. By using an SPI/MICROWIRE interface for communication with hostmicrocontroller (µC), the asynchronous I/O is suitable for use in RS232, RS485,IR and opto-isolated data links. IR-link communication is easy with device'sinfrared data association (IrDA) timing mode. It includes a crystal oscillatorand a baudrate generator with software programmable divider ratios for allcommon baud rates from 300 baud to 230k baud and two hardware handshakingcontrol lines are included (one input and one output). A software or hardwareinvoked shutdown lowers quiescent current to 10µA while allowing the IC todetect receiver activity. This device is used in intelligent instrumentation,UART in SPI systems, small networks in HVAC or building control and low cost IRdata links for computers/peripherals.Supply voltage range is 2.7V to 5.5VOperating temperature range from 0°C to 70°CIrDA SIR timing compatibleUp to 230k baud with a 3.6864MHz crystal8-word FIFO minimizes processor overhead at high data rates9bit address-recognition interruptReceive activity interrupt in shutdownLowest power of 150µA operating current at 3.3VSchmitt-trigger inputs for opto-couplersTX and RTS(complementary) outputs sink is 25mA for optocouplersApplicationsCommunications & Networking, Portable Devices, Consumer ElectronicsProduct InformationNo. of Channels: 1 ChannelData Rate: 230KbaudSupply Voltage Min: 2.7VSupply Voltage Max: 5.5VInterface Case Style: QSOPNo. of Pins: 16PinsOperating Temperature Min: 0°COperating Temperature Max: 70°CProduct Range: -Automotive Qualification Standard: -MSL: MSL 1 - Unlimited
