Maxim Integrated (MAX31911AUI+) SerDes, Serialiser, Analogue

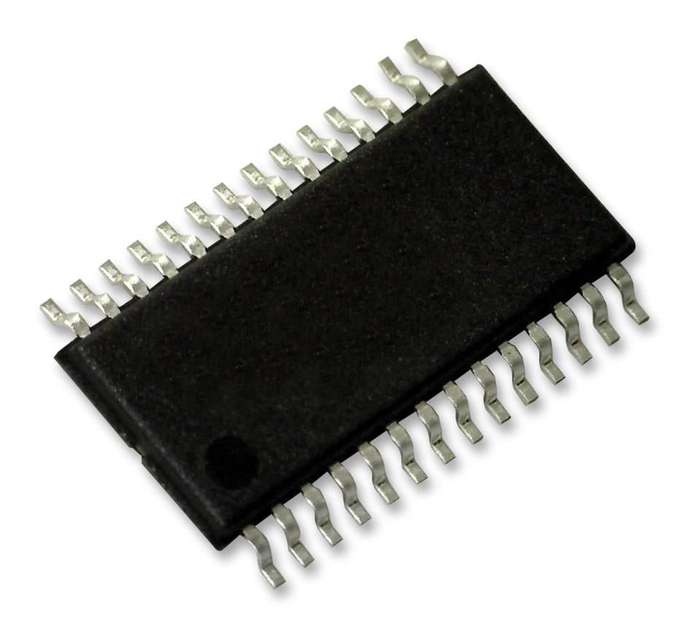

Product OverviewThe MAX31911AUI+ is an industrial, octal, digital input translator/serializer in28 pin TSSOP package. The industrial interface serializer translates conditionsand serializes the 24V digital output of sensors and switches. It provides thefront-end interface circuit of a programmable logic controller digital inputmodule. The device features integrated current limiting, low pass filtering andchannel serialization. Input current limiting allows a significant reduction inpower consumed from the field voltage supply as compared to traditional discreteresistor-divider implementations. Selectable on-chip low pass filters allowflexible debouncing and filtering of sensor outputs based on the application.On-chip serialization allows a drastic reduction in the number of optocouplersused for isolation. The device serializer is stackable so that any number ofinput channels can be serialized and output through only one SPI-compatibleport.Supply voltage range is 7V to 36VOperating temperature range from -40°C to 125°CLow quiescent current of 1.4mAHighly accurate and stable input current limiters, adjustable from 0.5mA to 6mAEight high voltage input channels of 36V maxOn-chip 8-1 serialization with SPI interfaceOn-chip 5V regulatorOn-chip overtemperature indicatorOn-chip field supply voltage monitorIntegrated debounce filters, selectable from 0 to 3msApplicationsCommunications & Networking, Portable Devices, IndustrialProduct InformationSERDES Function: SerialiserData Rate: -IC Input Type: AnalogueIC Output Type: DigitalDriver Case Style: TSSOPNo. of Pins: 28PinsSupply Voltage Min: 7VSupply Voltage Max: 36VNo. of Inputs: 8InputsNo. of Outputs: 1OutputsProduct Range: -Automotive Qualification Standard: -MSL: MSL 1 - Unlimited
