Maxim Integrated (MAX3222ECWN+T) Transceiver RS232

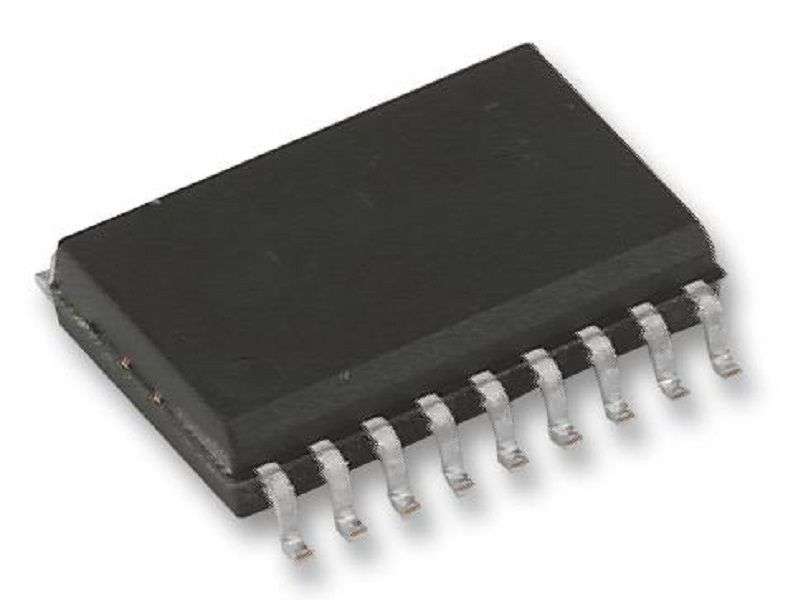

Product OverviewThe MAX3222ECWN+T is a ±15KV ESD protected true RS232 transceiver in 18 pinWSOIC package. This 3V powered EIA/TIA-232 and V.28/V.24 communicationsinterface device has low power consumption, high data rate capabilities andenhanced ESD protection. The enhanced ESD structure protects all transmitteroutputs and receiver inputs to ±15KV using IEC 1000-4-2 air-gap discharge, ±8KVusing IEC 1000-4-2 contact discharge and ±15KV using human body model. A lowdropout transmitter output stage delivers true RS232 performance from 3V to 5.5Vpower supply using an internal dual charge pump. The charge pump requires onlyfour small 0.1µF capacitors for operation from 3.3V supply. The MAX3222E has tworeceivers and two transmitters. It also features 1µA shutdown mode that reducespower consumption in battery powered portable systems. The receivers remainactive in shutdownmode allowing monitoring of external devices while consuming only 1µA of supplycurrent.Supply voltage range from 3V to 5.5VOperating temperature range from 0°C to 70°CMaximum data rate of 250KbpsMaximum transition region slew rate of 30V/µs (CL = 150pF to 1000pF)Pin, package and functionally compatible with the industry standard MAX242deviceApplicationsCommunications & Networking, Consumer Electronics, Portable DevicesProduct InformationDevice Type: TransceiverIC Interface Type: RS232No. of Drivers: 2DriversNo. of Receivers: 2ReceiversSupply Voltage Min: 3VSupply Voltage Max: 5.5VDriver Case Style: WSOICNo. of Pins: 18PinsOperating Temperature Min: 0°COperating Temperature Max: 70°CProduct Range: -Automotive Qualification Standard: -MSL: MSL 1 - Unlimited
