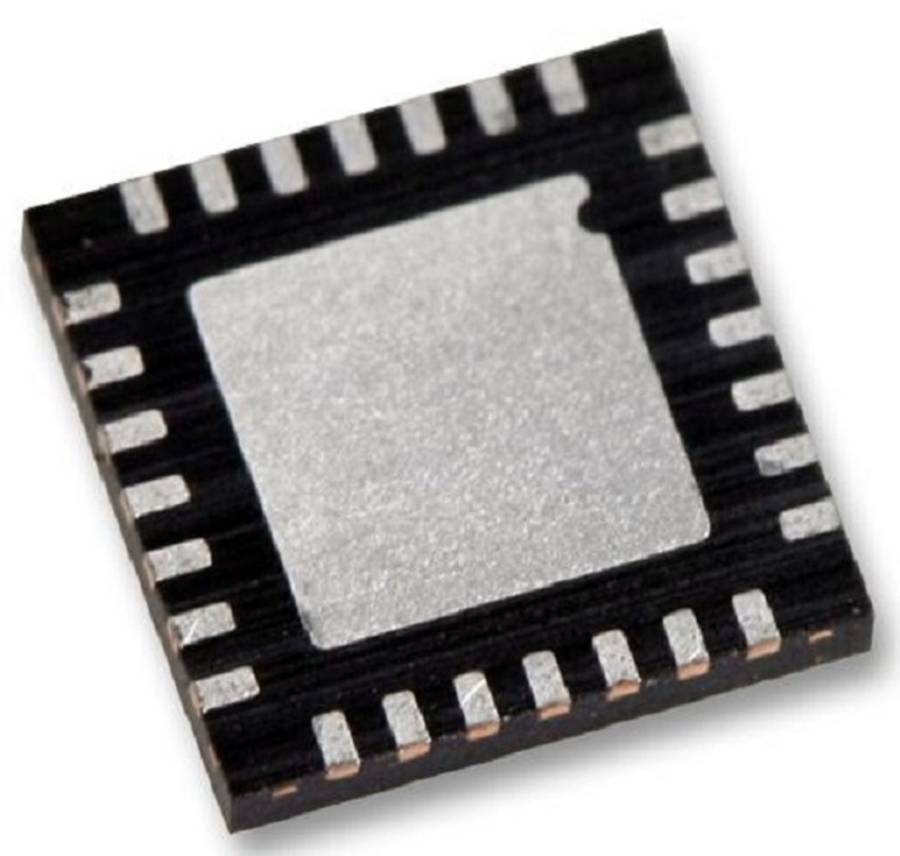

Maxim Integrated (MAX4888AETI+) PCI & PCIe Device, PCIe Switch

Product OverviewThe MAX4888AETI+ is a 5Gbps PCI Express passive switch in 28 pin TQFN package.This high speed passive switch routes PCI Express (PCIe) data between twopossible destinations. The MAX4888A is a quad single pole/double throw (4 xSPDT) switch and it is ideally suited for switching two half lanes of PCIe databetween two destinations. The device features a single digital control input(SEL) to switch signal paths.Low same pair skew of 7psPower supply range from 1.65V to 3.6V and V+ supply current of 60µASupports PCIe Gen I and Gen II data ratesFlow through pin configuration for ease of layout and industry compatiblepin-outOff isolation of -56dB at f = 10MHz and -26dB at f = 1.25GHz7ohm on-resistance and 1ohm maximum on-resistance match between pairs of samechannel2ohm maximum on-resistance match between channels and 2ohm maximum on-resistanceflatnessTurn-on time of 90ns, turn-off time of 10ns and propagation delay of 50psCrosstalk of -53dB at f = 50MHz and -32dB at f = 1.25GHzOperating temperature range from -40°C to +85°CApplicationsSignal Processing, Portable Devices, Consumer ElectronicsProduct InformationPCI Bus Type: PCIe SwitchPCI Express Base Spec: -Digital IC Case: TQFNNo. of Pins: 28PinsSupply Voltage Min: 1.65VSupply Voltage Max: 3.6VOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -MSL: MSL 1 - Unlimited
