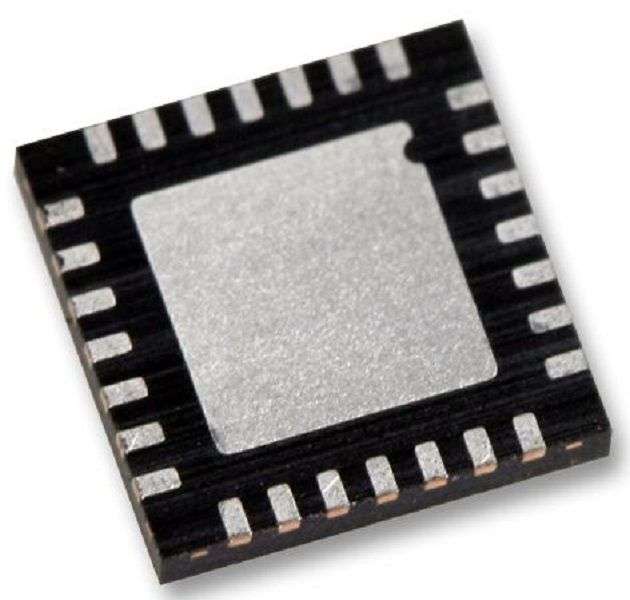

Maxim Integrated (MAX4888BETI+) PCIe Switch, 3V to 3.6V Supply, TQFN-28

Product OverviewThe MAX4888BETI+ is a dual passive switch with up to 8Gbps data rate in 28 pinTQFN package. This dual double pole/double throw (2 x DPDT), high speed passiveswitch is ideal for switching two half lanes of PCI Express (PCIe) data betweentwo possible destinations. It features a dual digital control input to switchsignal paths. The device is fully specified to operate from a single +3.3V (typ)power supply and it supports multiple high speed interfaces up to 8Gbps whilemaintaining signal integrity in the application.Supply voltage range from 3V to 3.6V and VCC supply current of 1mAOperating temperature range from -40°C to 85°CSupports PCIe Gen I, Gen II and Gen III data ratesSupports up to and including 6.0Gbps SAS/SATA signalsSupports other high speed interfaces (XAUI)Superior bandwidth return loss8.4ohm maximum on-resistance and 1.5ohm maximum on-resistance match betweenchannels at VCC = 3VPCI Bus Type: PCIe SwitchPCI Express Base Spec: -Digital IC Case: TQFNNo. of Pins: 28PinsSupply Voltage Min: 3VSupply Voltage Max: 3.6VOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -MSL: MSL 1 - Unlimited
