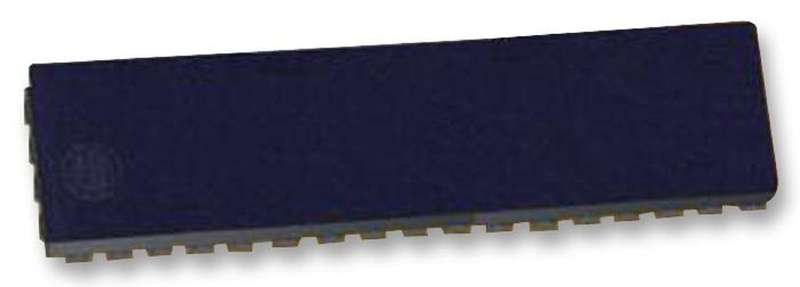

Maxim Integrated (MAX4889AETO+T) PCI Express Switch, PCIe 1.0, PCIe 2.0,

Product OverviewThe MAX4889AETO+T from Maxim Integrated Products is a 5Gbps PCI Express® (PCIe)passive switch in 42 pin TQFN package. This high speed passive switch route PCIExpress® (PCIe) data between two possible destinations. The MAX4889A is an octalsingle pole/double throw (8 x SPDT) switch ideal for switching four half lanesof PCIe data between four destinations. It features a single digital controlinput (SEL) to switch signal paths. Typically used in desktop computers,servers/storage area networks and laptops.Single supply range from 1.65V to 3.6VOperating temperature range from -40°C to 85°CFour half lanes configurationLow same-pair skew of 7psLow 120µA (max) quiescent currentSupports PCIe Gen I and Gen II data ratesFlow through pin configuration for ease of layoutIndustry compatible pinoutDesktop Computers; Laptops; Servers/Storage Area NetworksProduct InformationPCI Bus Type: PCI Express SwitchPCI Express Base Spec: PCIe 1.0, PCIe 2.0Digital IC Case: TQFNNo. of Pins: 42PinsSupply Voltage Min: 1.65VSupply Voltage Max: 3.6VOperating Temperature Min: -40°COperating Temperature Max: 85°CProduct Range: -MSL: MSL 1 - Unlimited
