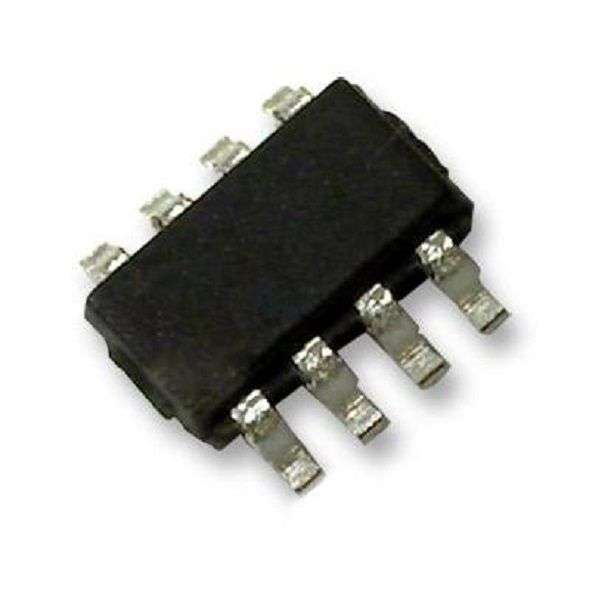

Maxim Integrated (MAX6373KA+T) Supervisor, 2.5 V to 5.5 V Supply

Supervisor, 2.5 V to 5.5 V Supply, 0.8 V Threshold, 10 ms Delay, Active-Low,Open-Drain, SOT-23-8Product OverviewThe MAX6373KA+T is a pin selectable watchdog timer in 8 pin SOT-23 package. Thisdevice supervises microprocessor (µP) activity and signal when a system isoperating improperly. During normal operation, microprocessor should repeatedlytoggle the watchdog input (WDI) before the selected watchdog timeout periodelapses to demonstrate that the system is processing code properly. If the µPdoes not provide a valid watchdog input transition before the timeout periodexpires, the supervisor asserts a watchdog (WDO- complementary) output to signalthat the system is not executing the desired instructions within the expectedtime frame. The watchdog output pulse can be used to reset the µP or interruptthe system to warn of processing errors. This flexible watchdog timer supervisorcan increase system reliability through notification of code execution errors.Supply voltage range is 2.5V to 5.5VOperating temperature range from -40°C to 125°CPin-selectable watchdog timeout periodsPin-selectable watchdog start-up delay periodsAbility to change watchdog timing characteristics without power cyclingOpen-drain or push-pull pulsed active-low watchdog outputWatchdog timer disable featureLow supply current of 8µA at TA = -40°C to +85°CNo external components requiredApplicationsSystem Monitoring, Communications & Networking, Industrial, AutomotiveProduct InformationThreshold Voltage: 800mVNo. of Supervisors / Monitors: 1MonitorsSupply Voltage Min: 2.5VSupply Voltage Max: 5.5VReset Type: Active-Low, Open-DrainDigital IC Case: SOT-23No. of Pins: 8PinsDelay Time: 10msOperating Temperature Min: -40°COperating Temperature Max: 125°CMSL: MSL 1 - Unlimited
