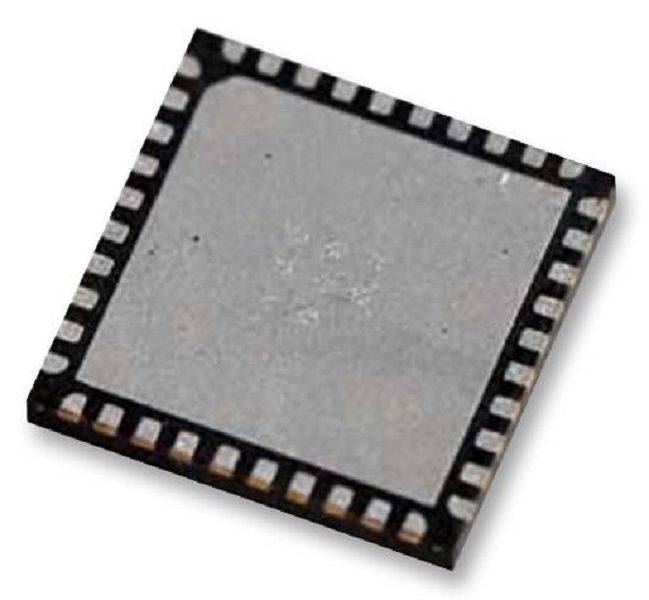

Maxim Integrated (MAX7300ATL+) I/O Expander, 400 kHz

Product OverviewThe MAX7300ATL+ is a 28 port I/O expander in 40 pin TQFN package. This compact,2-wire serial interfaced, I/O expansion peripheral provides microprocessors with28 ports. Each port is individually user configurable to either a logic input orlogic output. The device ports can be configured as either a push-pull logicoutput capable of sinking 10mA and sourcing 4.5mA or a schmitt logic input withoptional internal pull-up. Seven ports feature configurable transition detectionlogic which generates an interrupt upon change of port logic level. The MAX7300is controlled through an I2C compatible 2-wire serial interface and uses fourlevel logic that allow 16 I2C addresses from only two select pins.Supply voltage range is 2.5V to 5.5VMaximum shutdown current is 11µA400Kbps I2C compatible serial interfaceSerial clock frequency is 400KHzApplicationsCommunications & Networking, System Monitoring, Industrial, Consumer ElectronicsProduct InformationChip Configuration: -Bus Frequency: 400kHzIC Interface Type: I2CSupply Voltage Min: 2.5VSupply Voltage Max: 5.5VInterface Case Style: TQFNNo. of Pins: 40PinsNo. of I/O's: 28I/O'sProduct Range: -Automotive Qualification Standard: -MSL: MSL 1 - Unlimited
