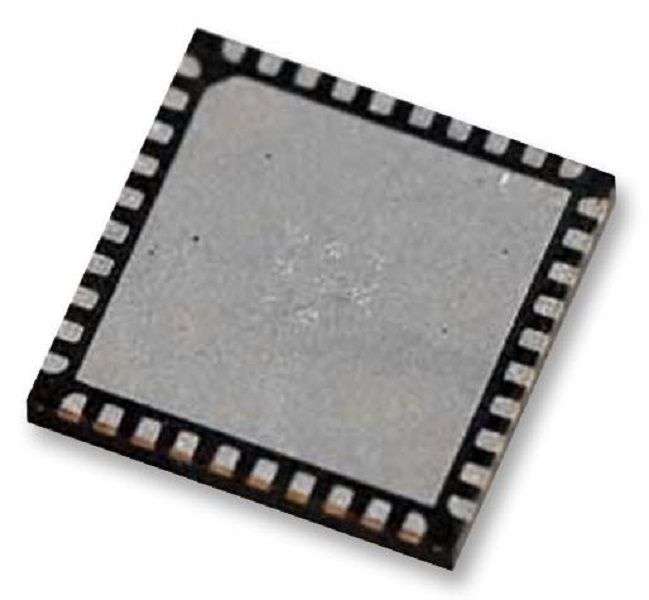

Maxim Integrated (MAX7301ATL+) I/O Expander, 26 MHz

Product OverviewThe MAX7301ATL+ is a 4 wire interfaced, 2.5V to 5.5V, 28 port I/O expander in 40pin TQFN package. This compact, serial interfaced I/O expander (or generalpurpose I/O (GPIO) peripheral) provides microprocessors with up to 28 ports.Each port is individually user configurable to a logic input or logic output.Each port can be configured either as a push-pull logic output capable ofsinking 10mA and sourcing 4.5mA or a Schmitt logic input with optional internalpull-up. Seven ports feature configurable transition detection logic whichgenerates an interrupt upon change of port logic level. The MAX7301 iscontrolled through an SPI compatible 4 wire serial interface.Low power consumption reduces power supply requirementsOperating temperature range from -40°C to 125°CHigh speed 26MHz SPI/QSP/MICROWIRE compatible serial interfaceMaximum shutdown current is 11µAApplicationsPower Management, Portable Devices, Industrial, System MonitoringProduct InformationChip Configuration: -Bus Frequency: 26MHzIC Interface Type: SPISupply Voltage Min: 2.5VSupply Voltage Max: 5.5VInterface Case Style: TQFNNo. of Pins: 40PinsNo. of I/O's: 28I/O'sProduct Range: -Automotive Qualification Standard: -MSL: MSL 1 - Unlimited
